Dashboard

Two Factor Authentication

How to enable two-factor authentication?

Download the Google authenticator app from the play store (Android) or App Store (iOS)

After downloading the Google Authenticator app, tap on the “Add” button as shown here.

Select “Scan a QR code” from the popup

  1. Scan the QR code on the 2FA screen on your desktop (shown above) using your device
  2. Enter the 6 digit OTP (displayed on your device) in the OTP field seen above
  3. Click on “Enable 2FA and login”

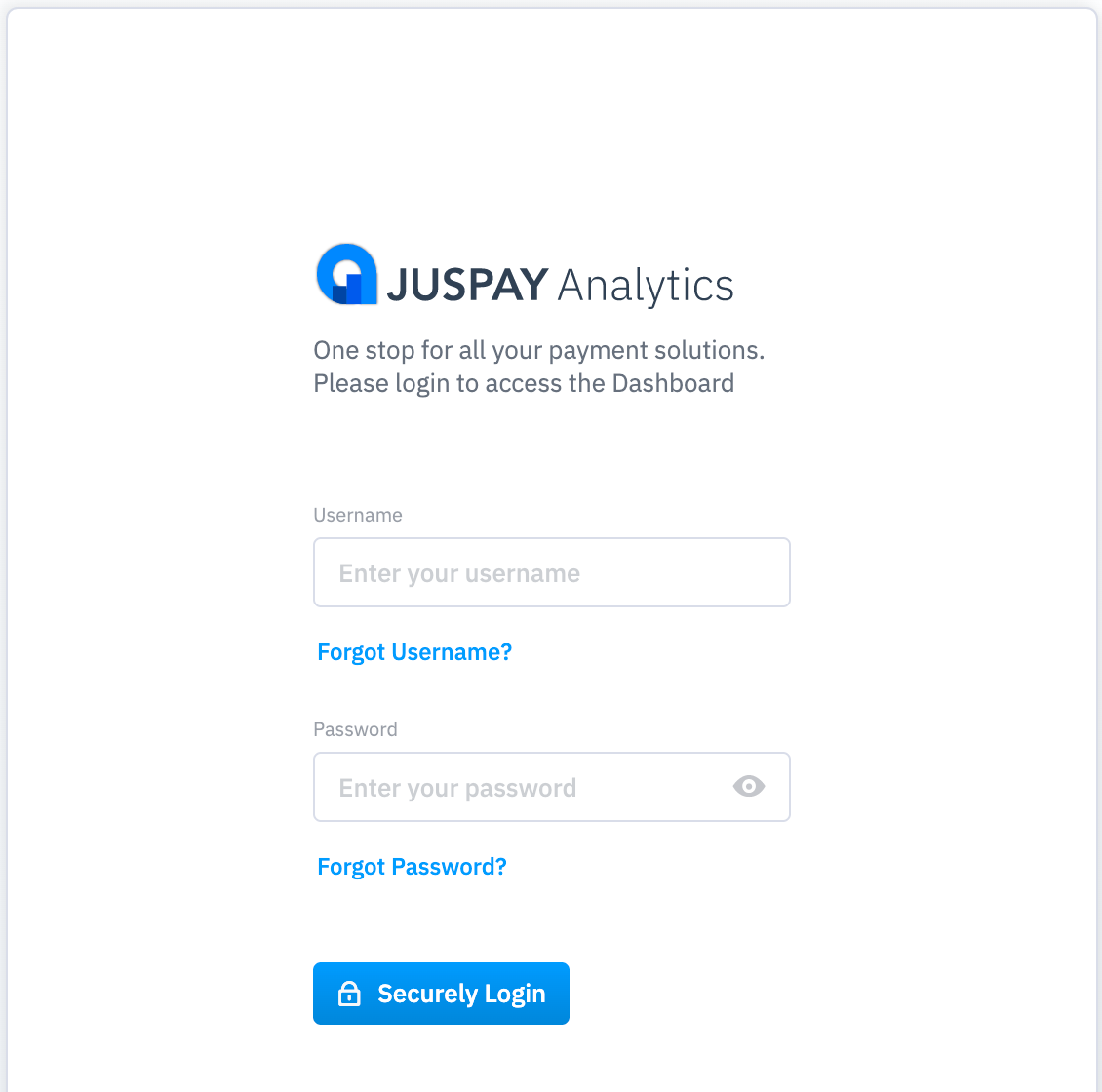

Once the above mentioned steps are completed, please re-enter the username and password, followed by the OTP screen wherein you have to enter the OTP (regenerated periodically) as seen on the Authenticator. This process needs to be followed each time you log in to the dashboard.

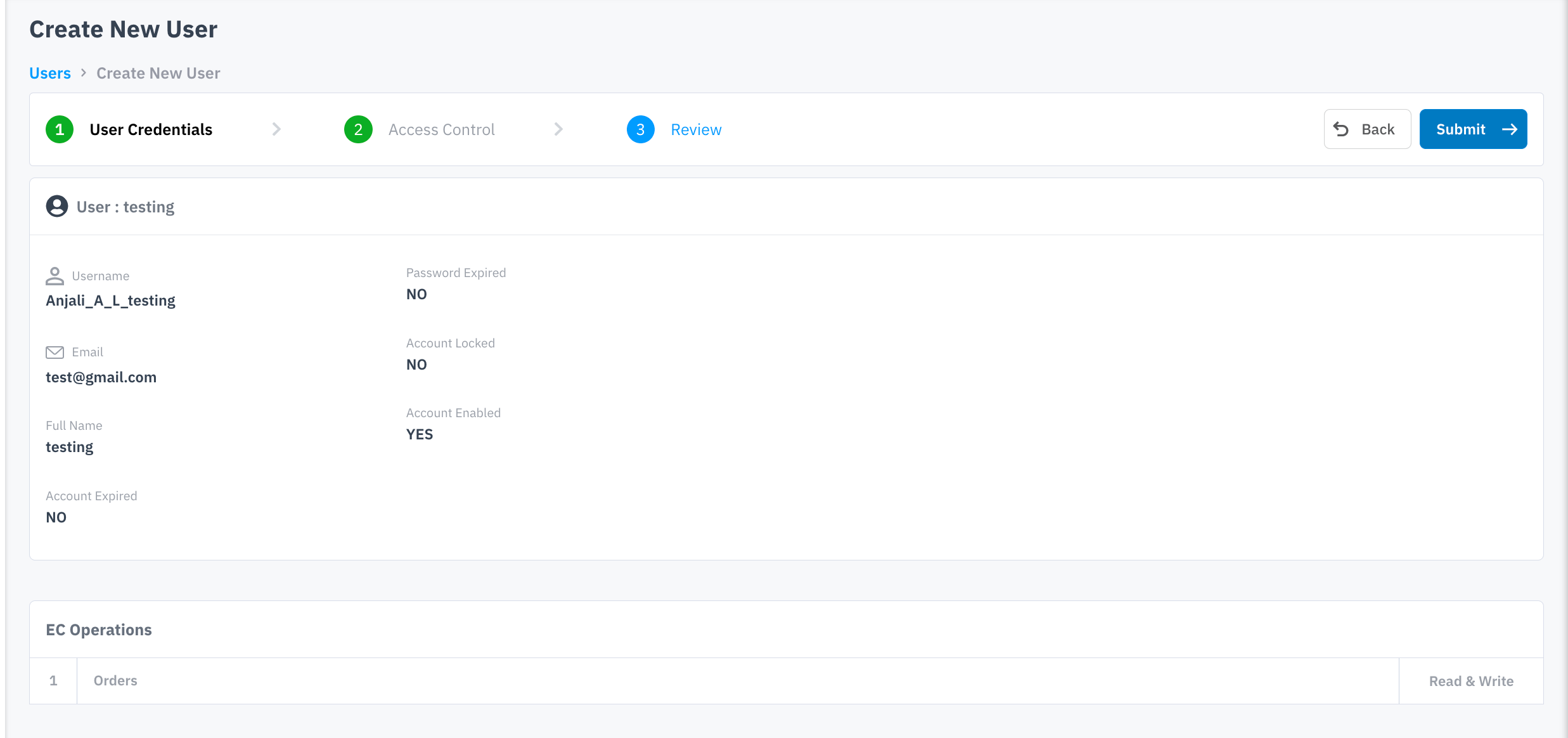

Users

Operations dashboard is based on rule-based access to users. This access control is determined by
merchant’s admin while creating the users.

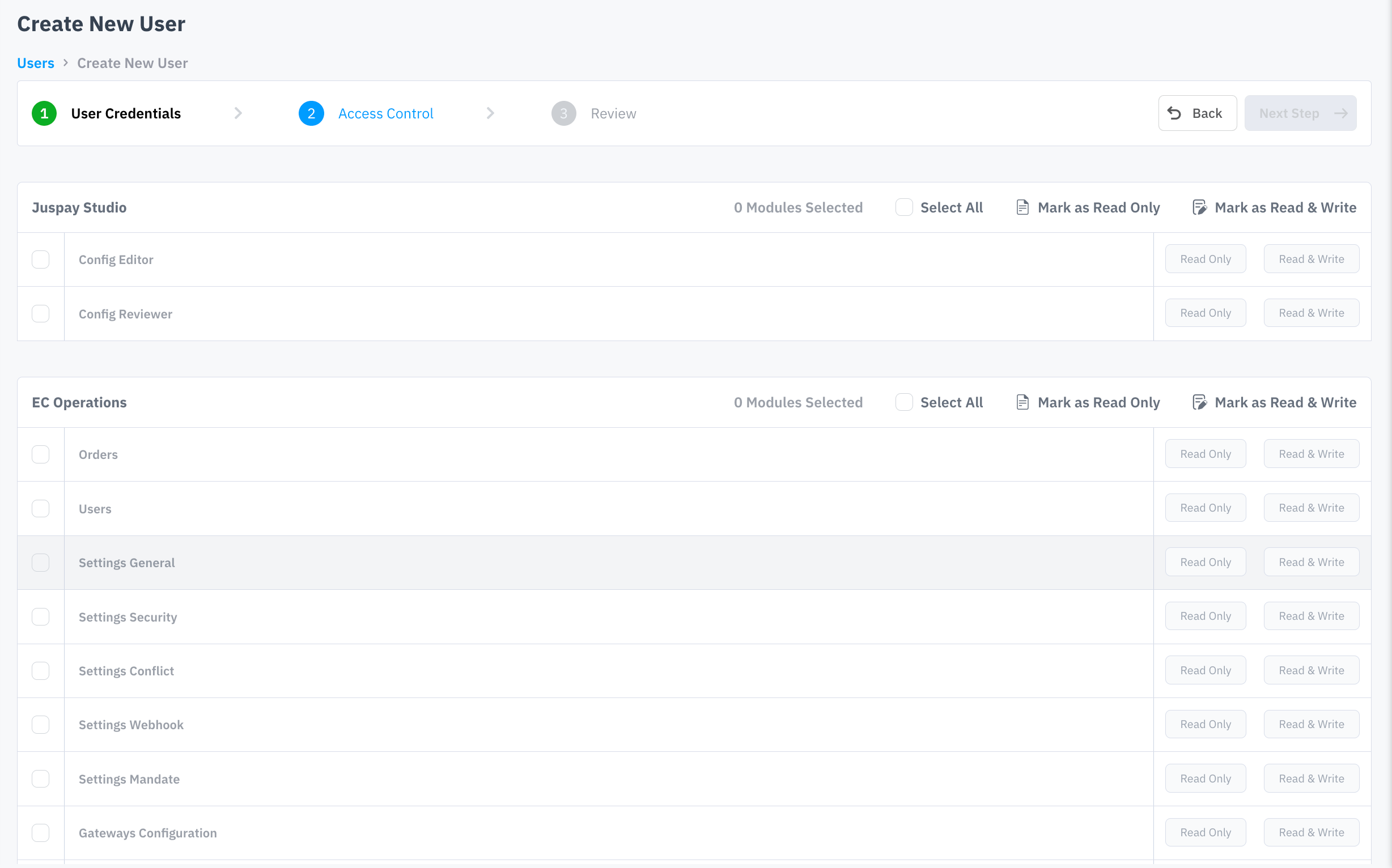

Merchant’s admin can give read-only or read+modify access to different modules listed here.
In the above illustration:
User will have read access to Orders and has read+write (modify) access to refunds.

📘

Note: Juspay will create the Admin and share credentials

Orders

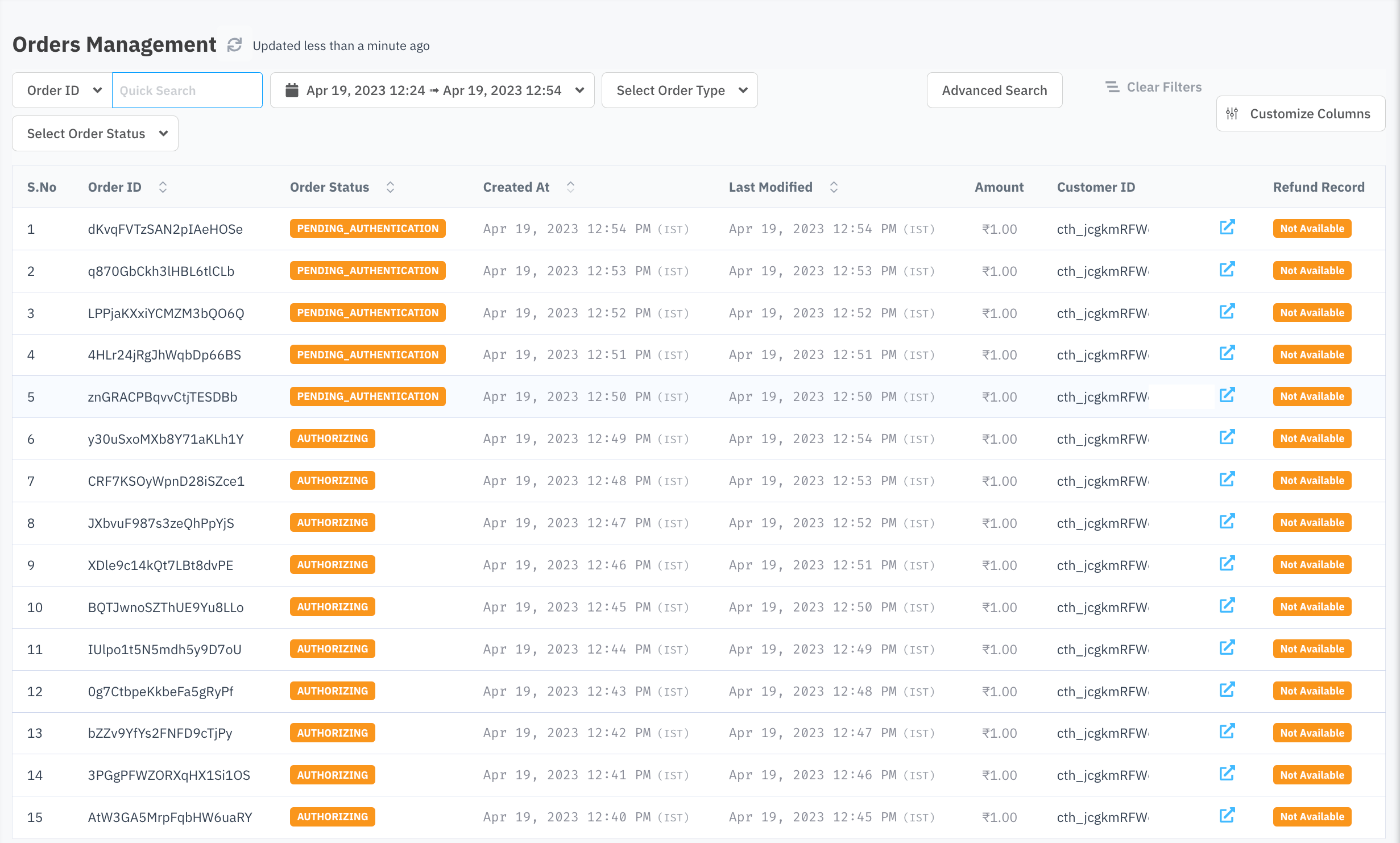

Order View:

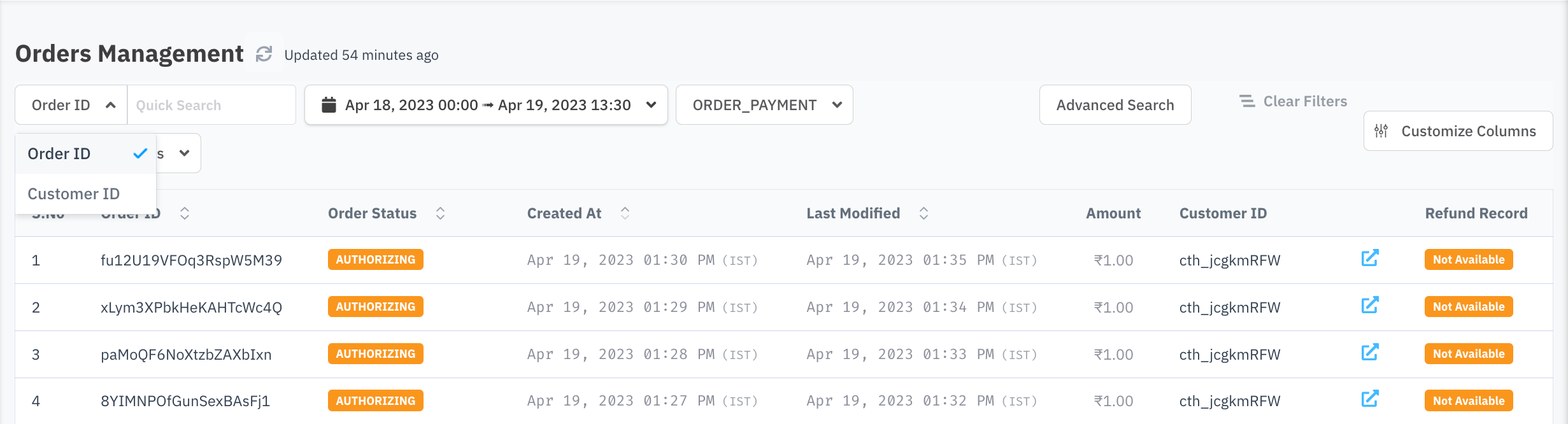

When clicked on ‘Orders’ on the left panel the list of orders is shown. And the user can select the time frame to view the orders

Customer Id: Unique Id of the customer that was passed during transaction by merchant
  • Order Id: Unique Id created during payment and one order can have multiple transaction Id's as the customer may retry payments
  • Created At: Transaction timestamp
  • Amount: Transaction amount
  • Order Status: Juspay provides different order status and explanation as below
  • Order StatusDescription
    NEWNew created order (order created but the customer didn’t commence the transaction)
    SUCCESSSuccessful/ Charged Transaction
    PENDING_AUTHENTICATIONAuthentication in progress (status is not confirmed yet)
    AUTHENTICATION_FAILEDUser didn’t complete the transaction
    AUTHORIZATION_FAILEDUser completed transaction but the bank refused
    JUSPAY_DECLINEDUser input is not accepted by underlying PG
    AUTHORIZINGTransaction status pending from bank
    COD INITIATEDInitiated Doesn’t appear for the regular merchant (Created for an edge case)
    VOID_INITIATEDVoid pending for the pre-authorized transaction
    VOIDEDVoid is successful for the pre-authorized transaction
    AUTHORIZEDTransaction is Authorised but not captured

    📘

    Note: Pending statuses are updated when Juspay receives updated status from underlying PG and status is sent to the merchant via webhooks

    Order View

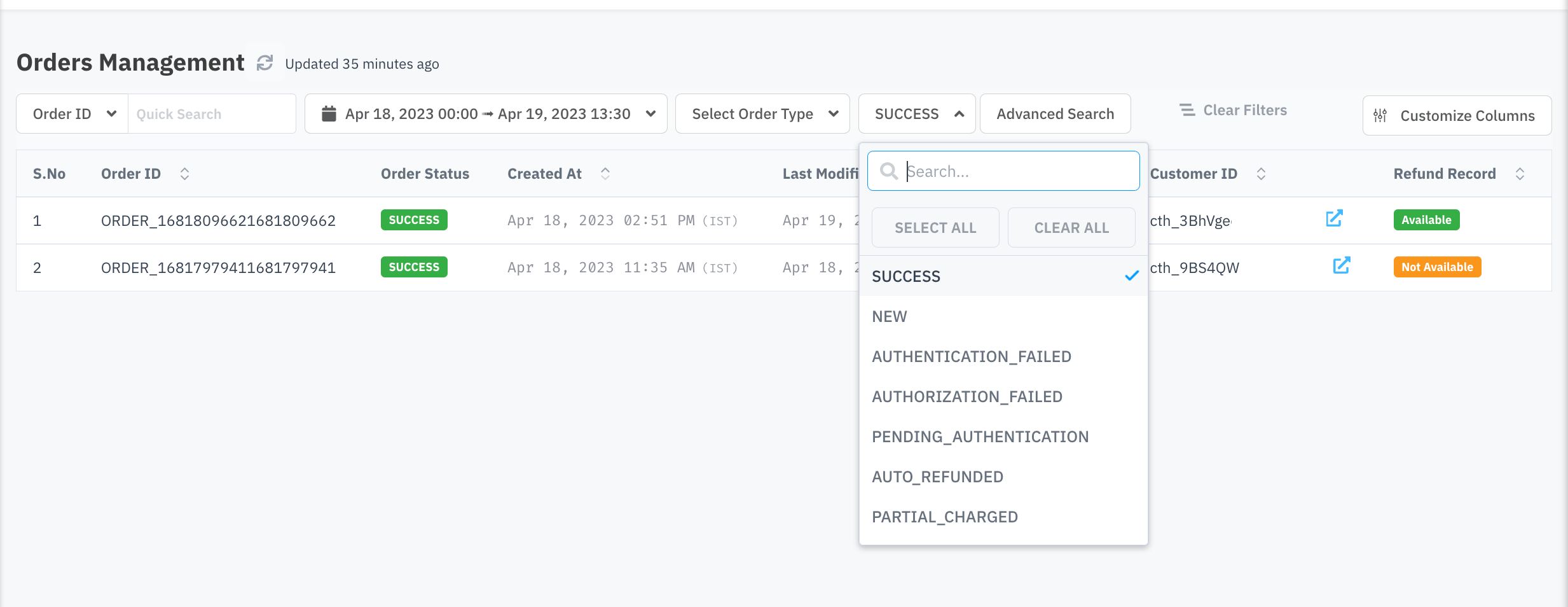

    Using status
    User can view the orders based on order status by selecting one of the order statuses

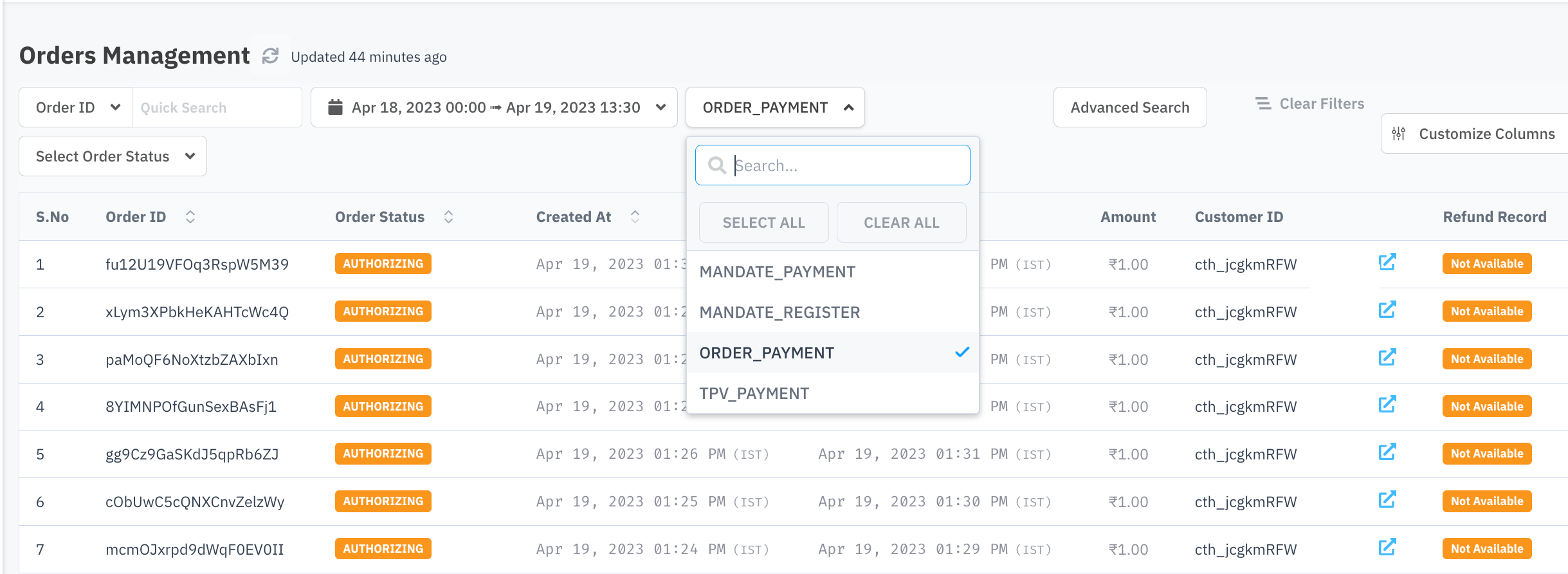

    Using Order Type
    Users can view the orders based on the type of the order by choosing any one of the types provided.

    Order TypeDescription
    MANDATE PAYMENTRecurring mandate transaction
    MANDATE REGISTERMandate registration transaction
    TPV PAYMENTThe TPV transactions
    ORDER PAYMENTAll the other transactions

    Order Search

    If user wish to search for specific order then can type the order id or customer id

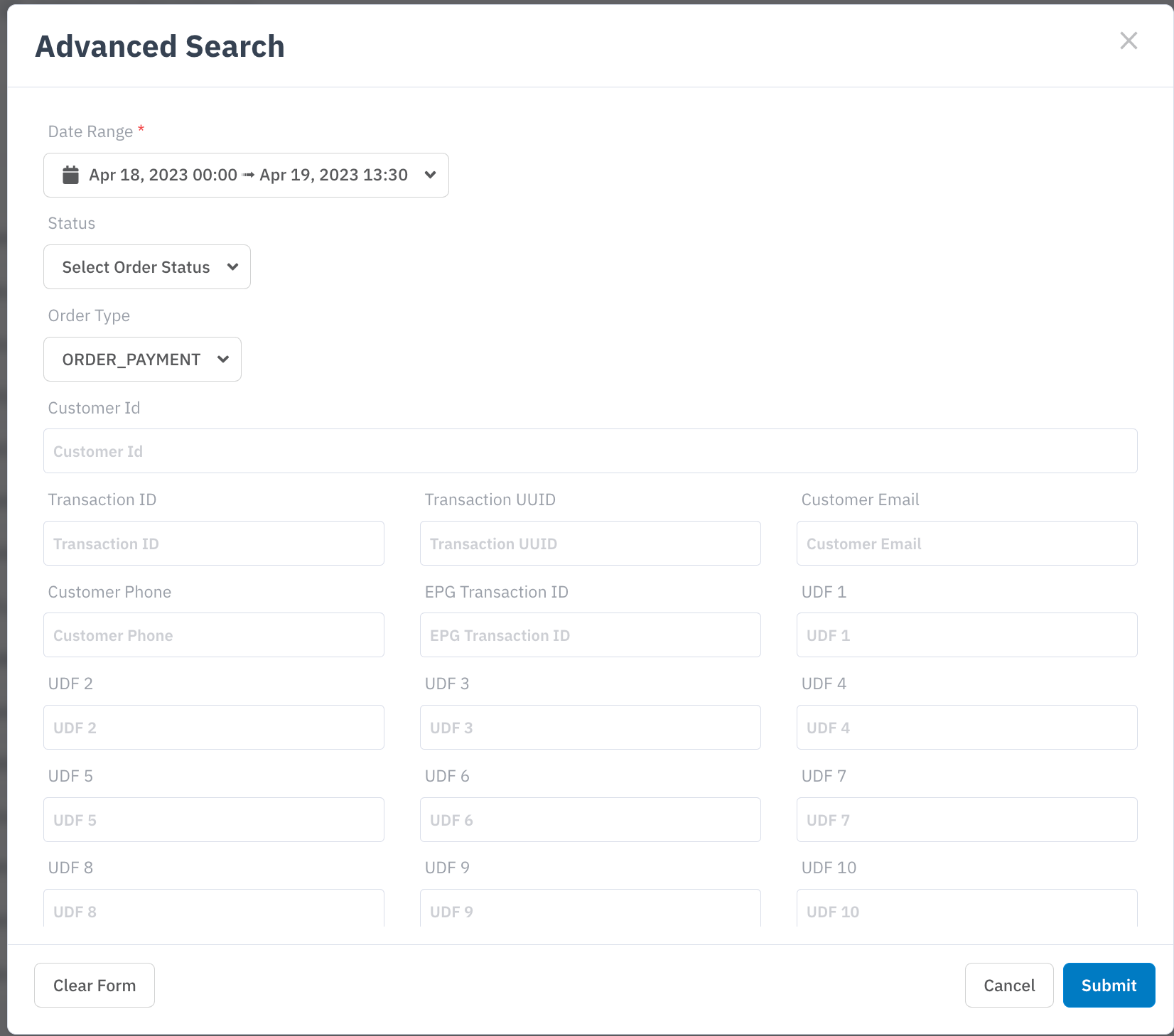

    Also, user can use the advanced search option to search order based on transaction id, customer email, phone or UDF parameters

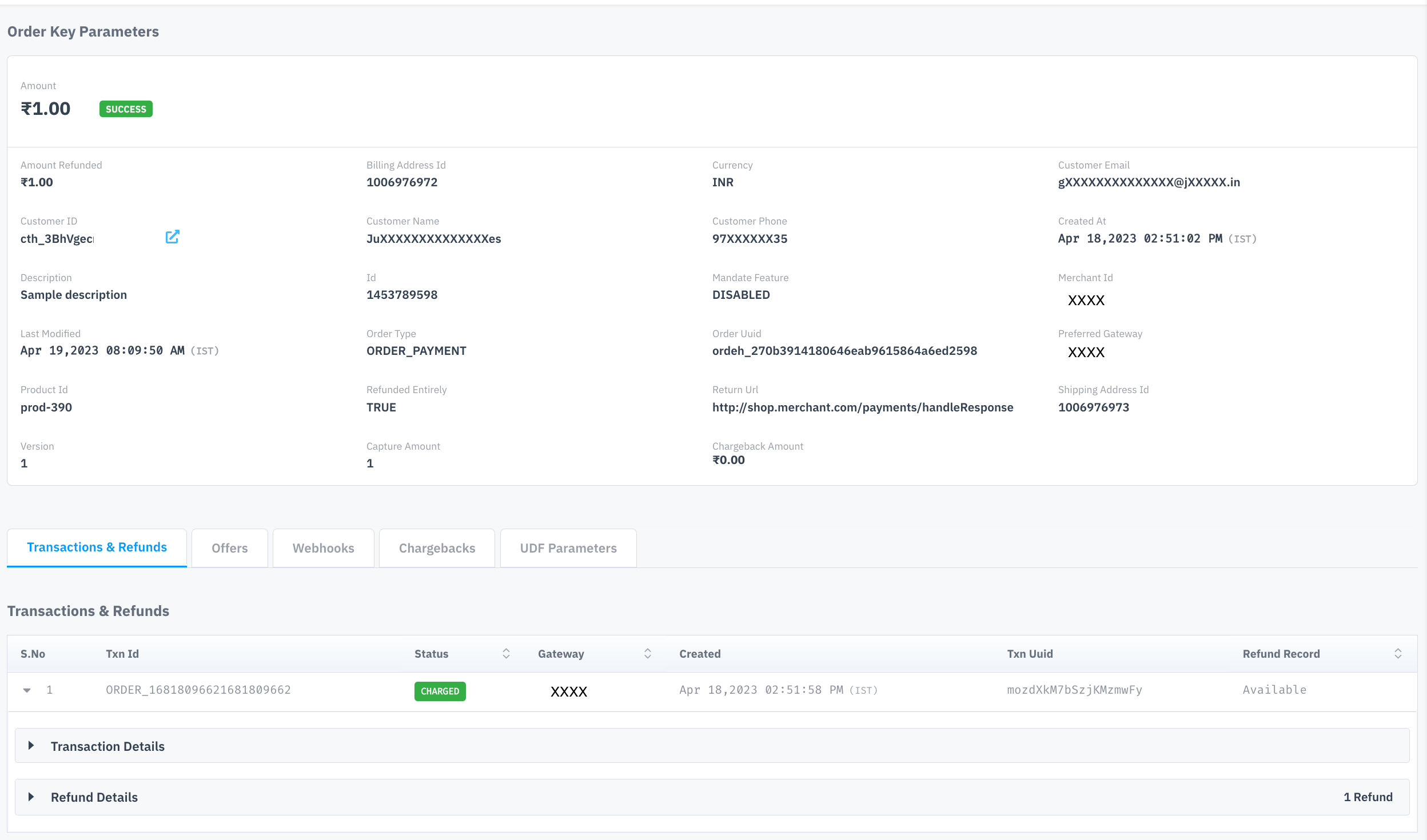

    Order Details:

    If the user wants to drill down a specific order then click on a particular entry in order list

    Order Information shows above shown details

    • Amount: Transaction amount, refund amount (if any)
    • Customer-related: Customer mail, mobile
    • Order related: order id, PG used, the order created timestamp and order modified timestamp (if the status is updated later point)
    • UDF related: User Defined Data that was passed by the merchant during a transaction

    The most important point to view is Order Status so the user can initiate fulfillment activity.

    Order - Transaction Details

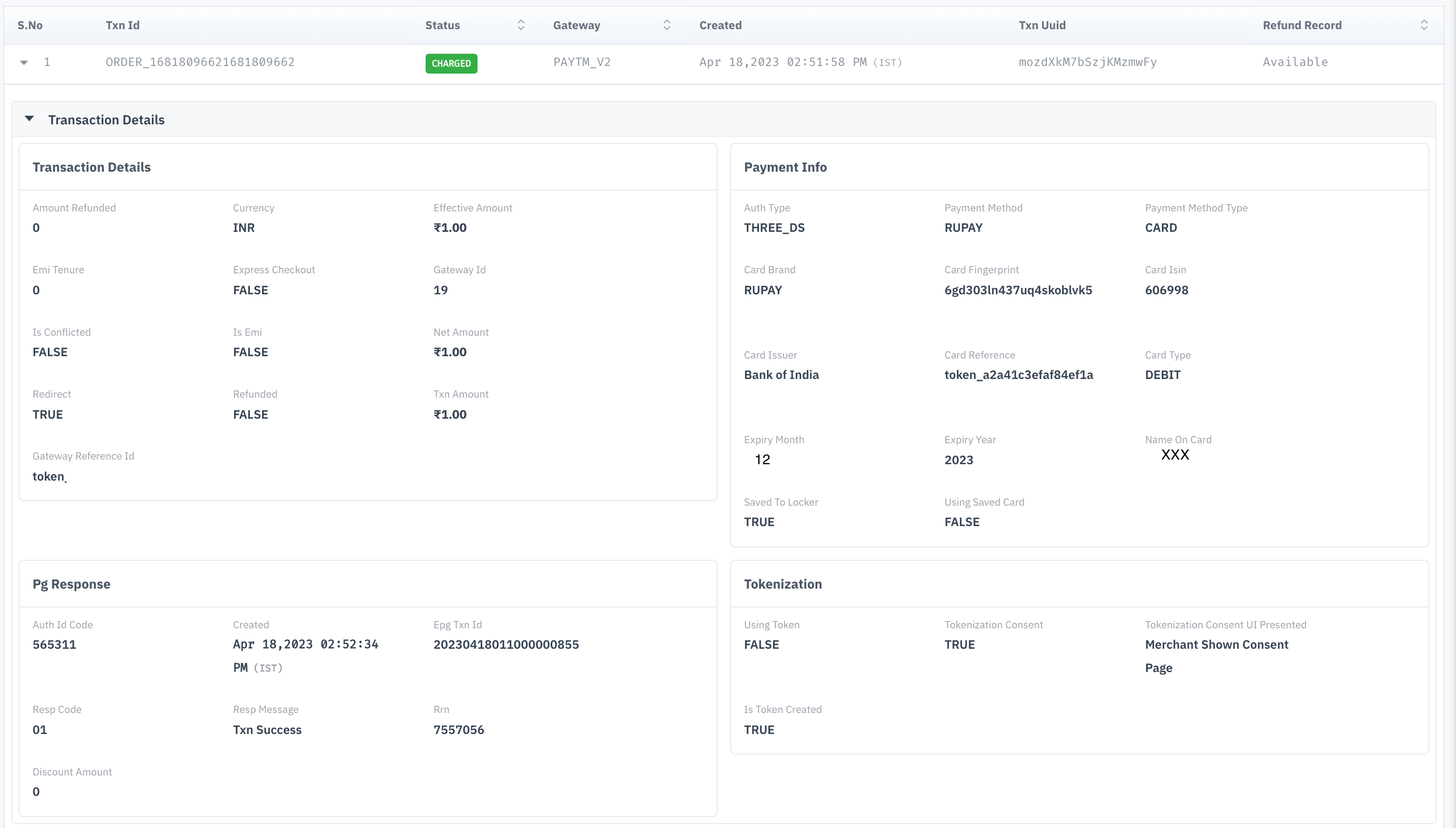

    After selecting the order, when clicked on ‘transactions’ tab, the user can view the transaction details
    One order can have one or more transactions as customer retries are considered as transactions and listed under same order id.

    Download Order Report

    User can download the report by clicking on ‘Download Orders’ button

    Sample report format:

    Fields: Order Id, Currency, Amount, Status, Customer Id, Customer email, Customer Phone, Order Type,
    Order UUID, Product Id, Mandate feature, Promotion Discount, Amount Refunded, Refunded Entirely,
    Merchant Id, Return URL, Description, Date Creation, Last Modified, UDF (1 to 10)

    📘

    Note: Downloading reports for large data operations will be a time-consuming effort. Alternatively, Juspay can set auto-mailer for the report.

    Refunds

    The user selects the order and then clicks on ‘Refunds’ tab

    (Shows that there are no refunds marked against the order)

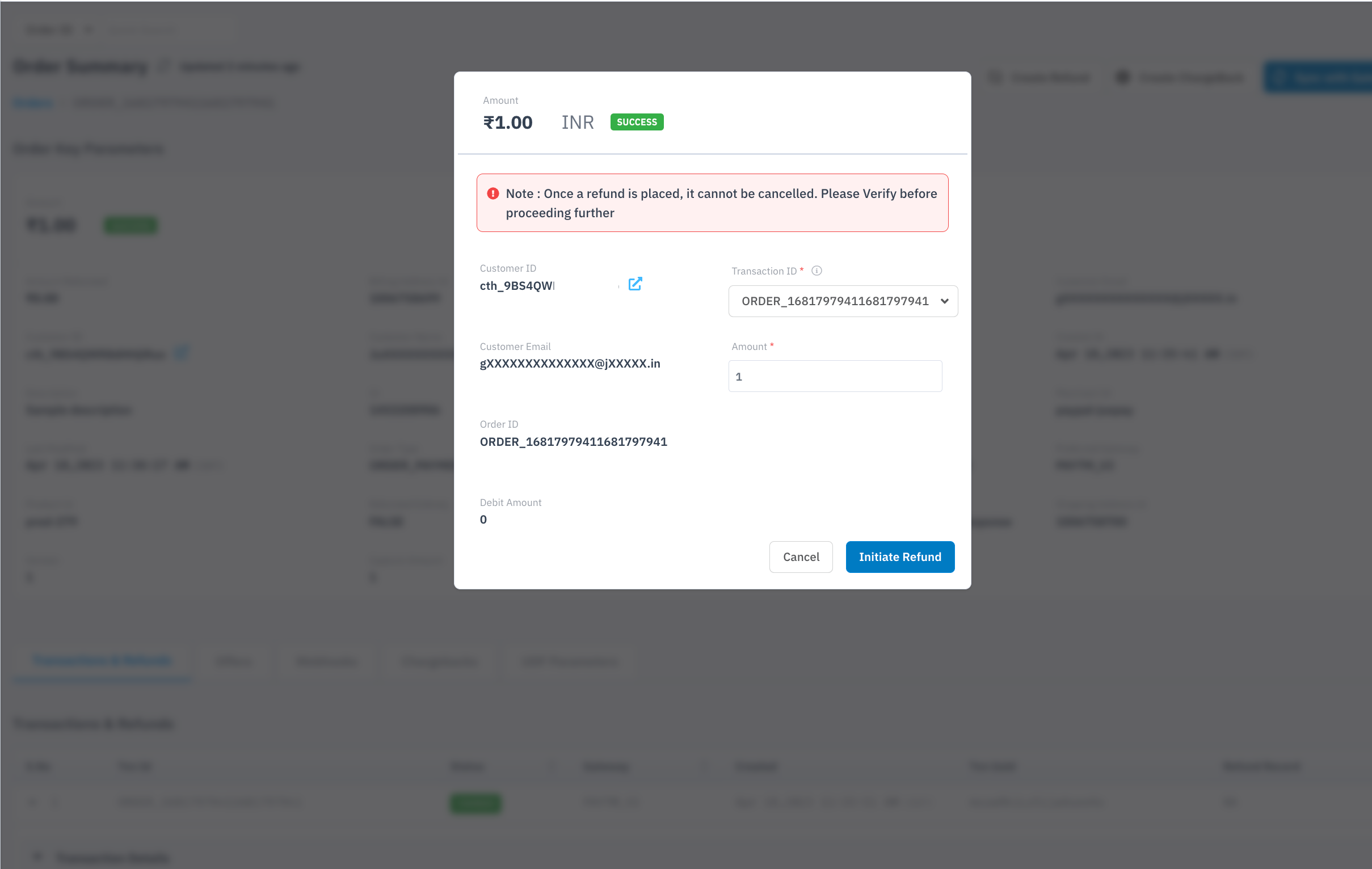

    Marking Refund:

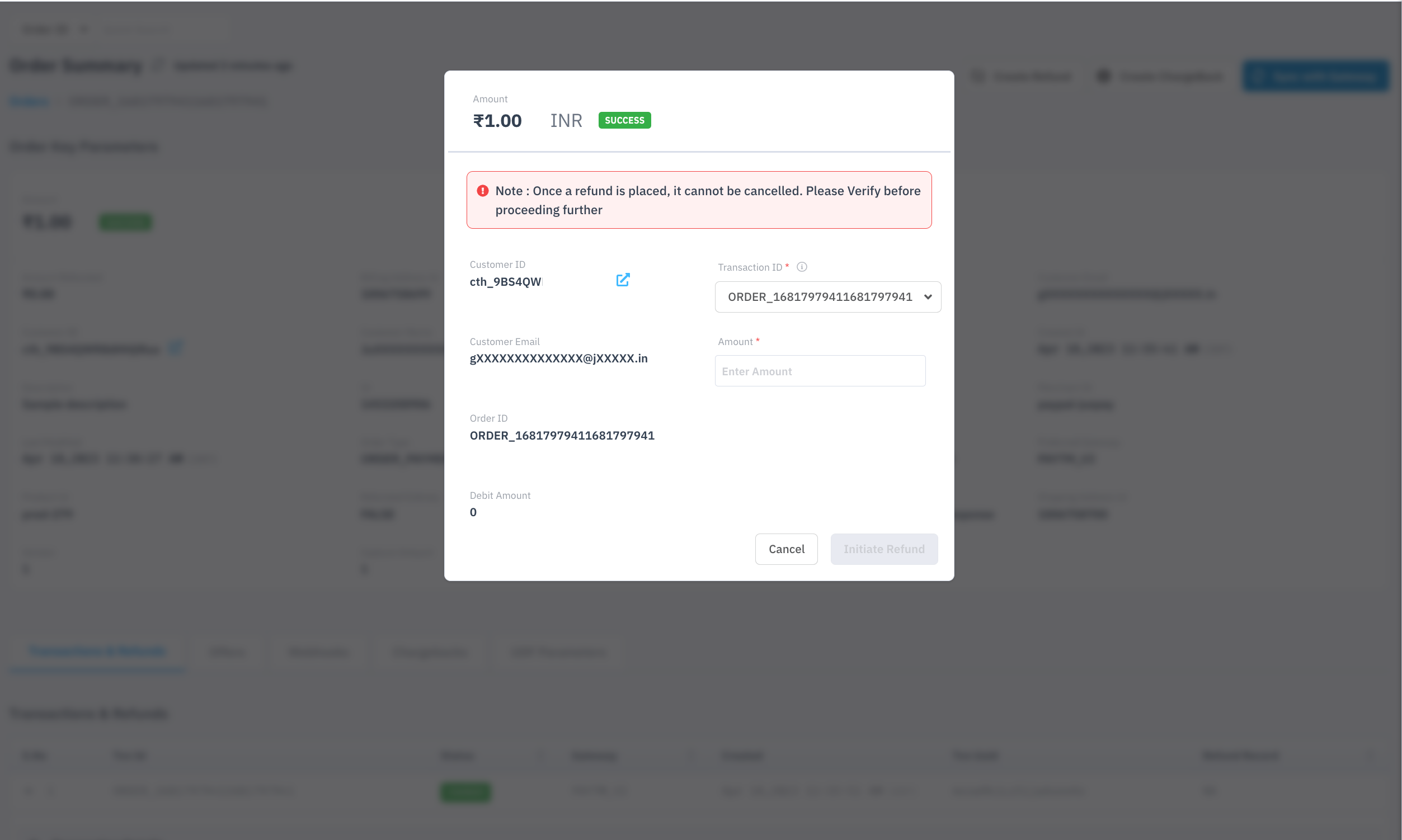

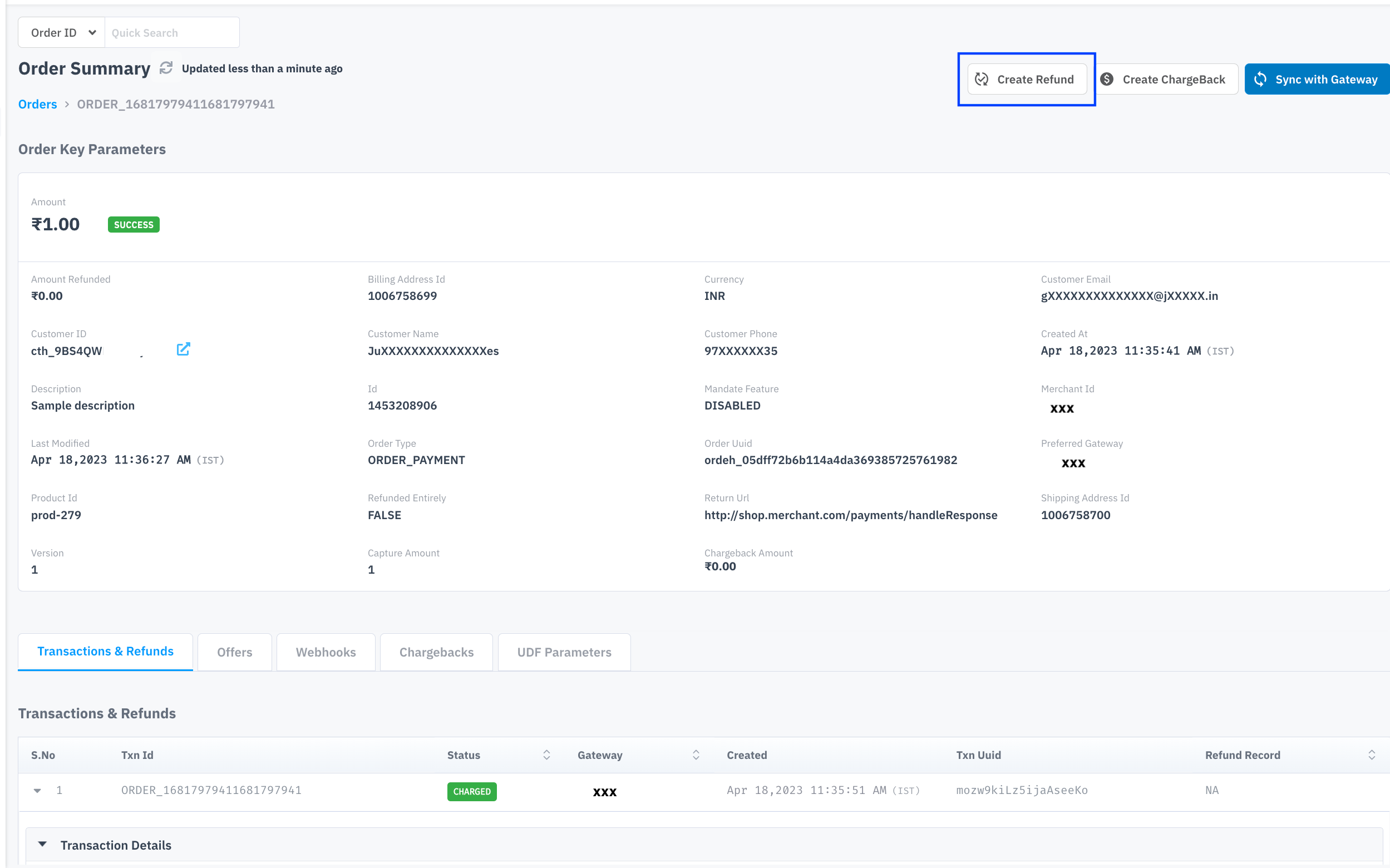

    To mark the refund for an Order Id, user to click on the ‘Create Refund’ button

    User to enter the amount and click on ‘Refund Amount’

    📘

    Note: User can mark multiple refunds against the same order id as long as the sum of those refunds doesn’t exceed transaction amount

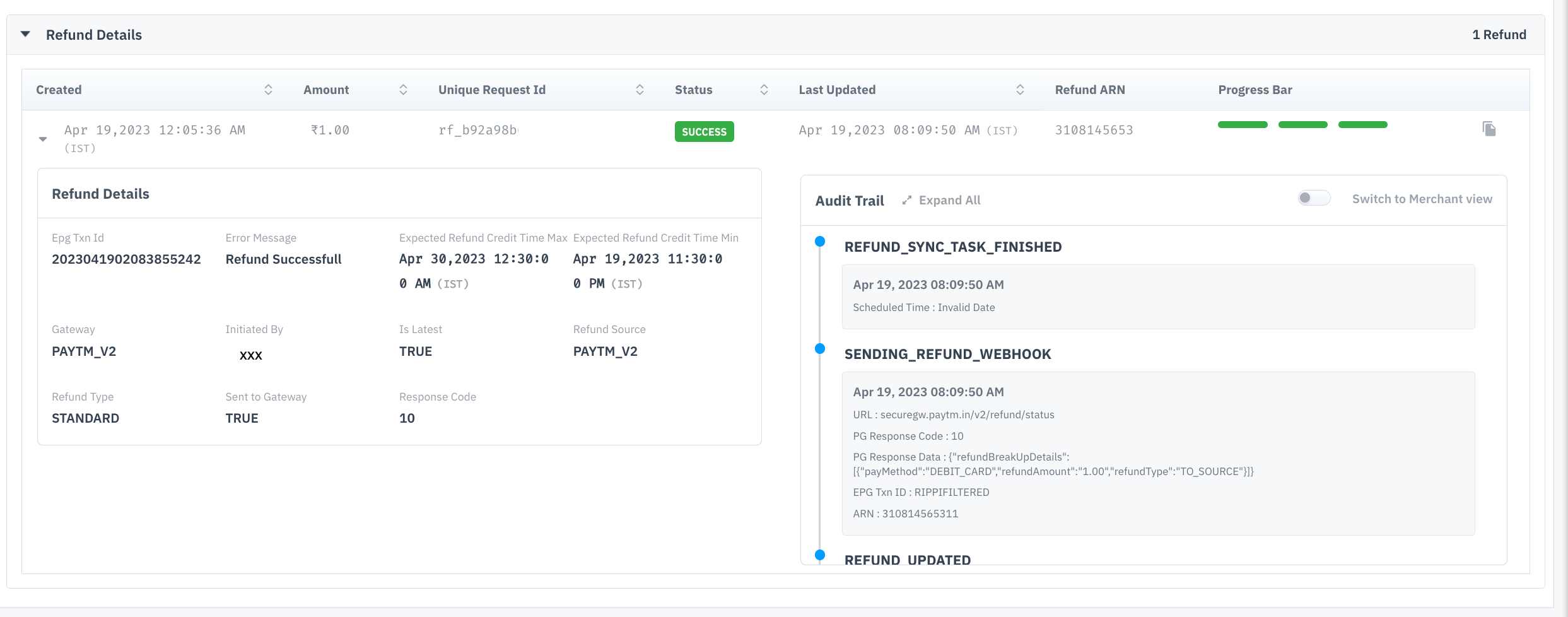

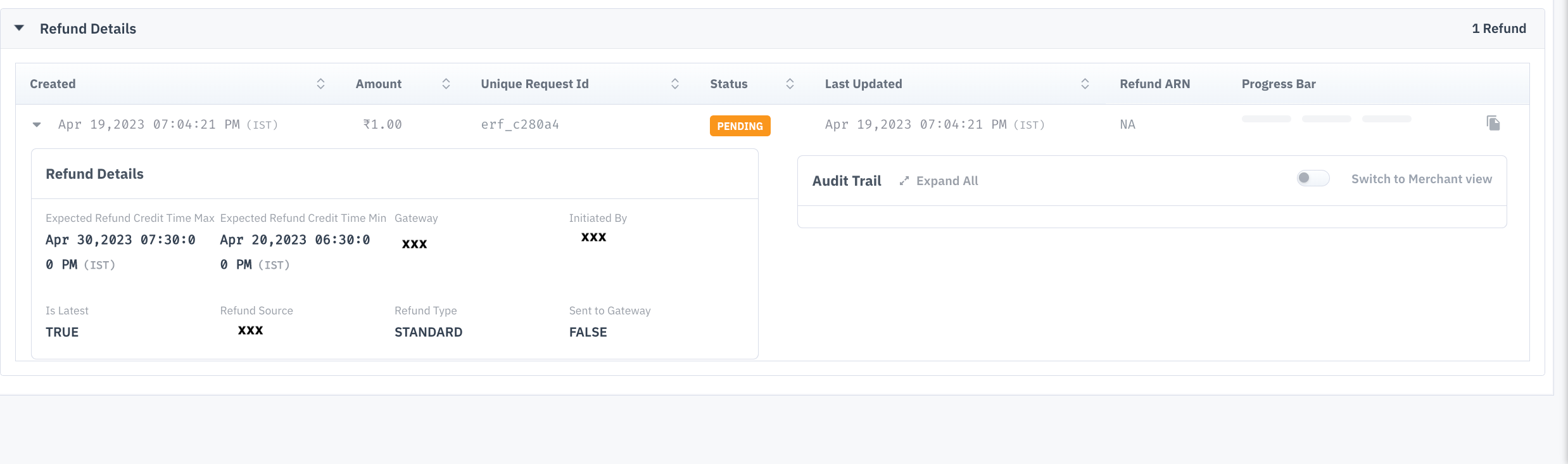

    Refund Status

    Once the refund is marked for an order then it will be shown in the dashboard (under the order and ‘refunds’ tab)
    The explanation for refund status:

    • Pending: Juspay has marked refund and sent a refund request to underlying PG
    • Success: Refund has been successfully executed by underlying PG
    • Failure: Refund is failed
    • Manual Review: Refunds that are pending more than 10 days goes into manual review

    📘

    Note: refunds are queued before sent to underlying PG. Refunds may take max. 7 days to reach customer’s account or card and delay is specific to underlying PG and its banks

    Batch Refunds

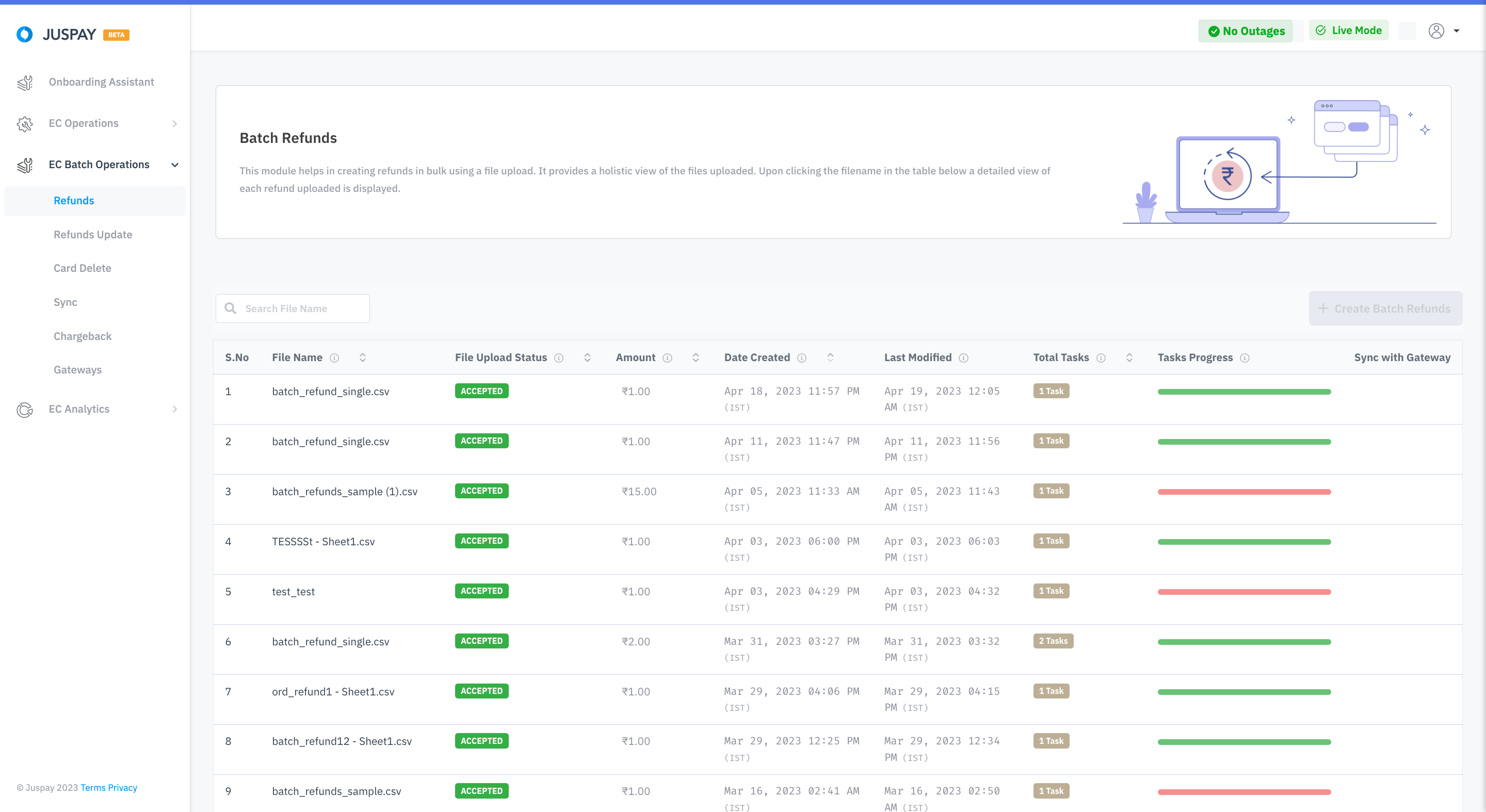

    User can mark multiple refunds by uploading a single file by selecting ‘Batch Refund’ on left side panel

    📘

    Note: Batch files uploaded are shown here.

    Create Batch Refund

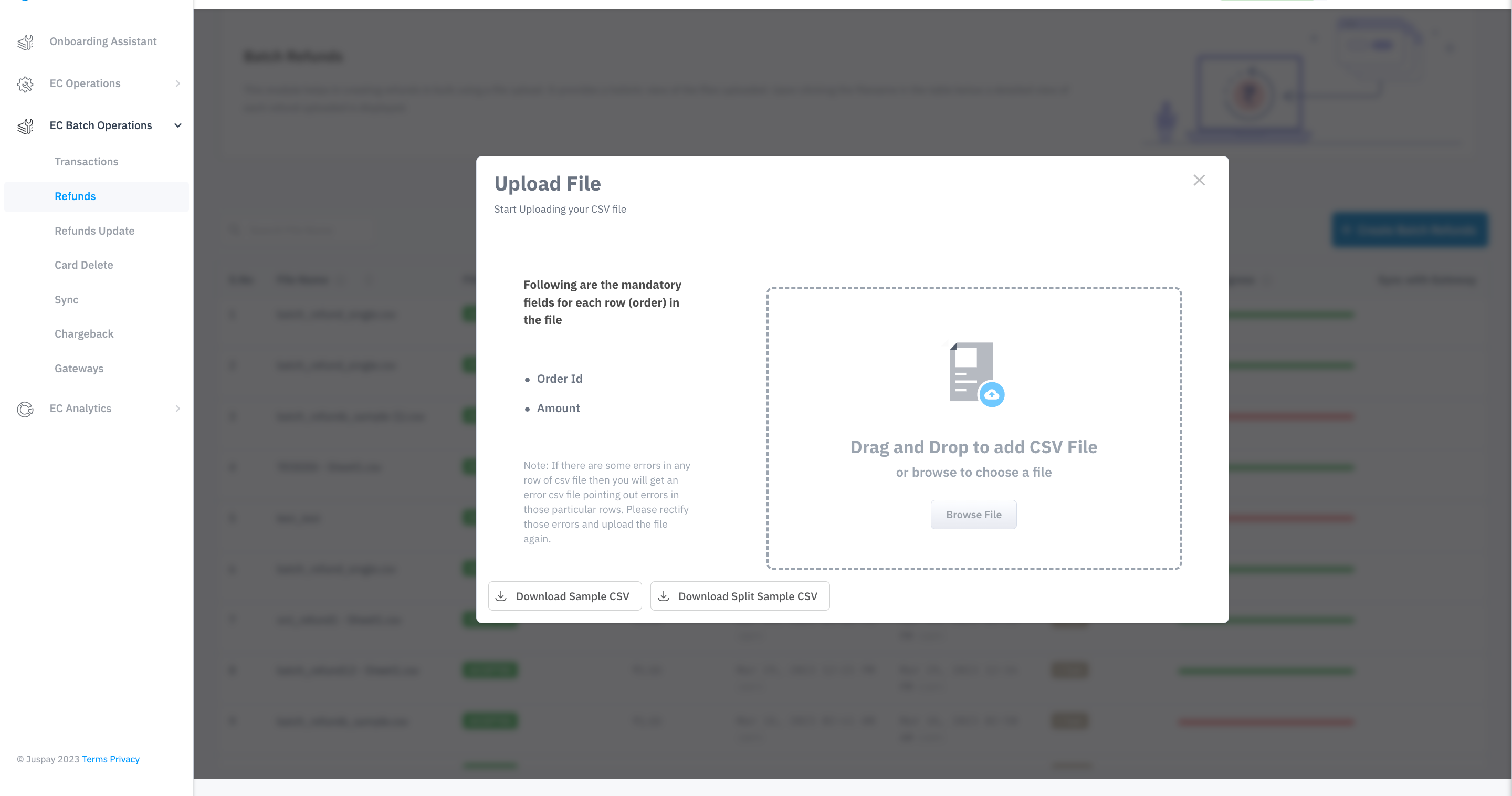

    When the user clicks on ‘create batch refund’ button, the console is shown to upload the file.

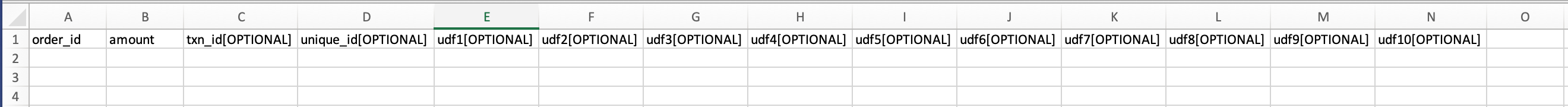

    The batch file should be in .csv format and details should be in below format

    Gateways

    Gateways

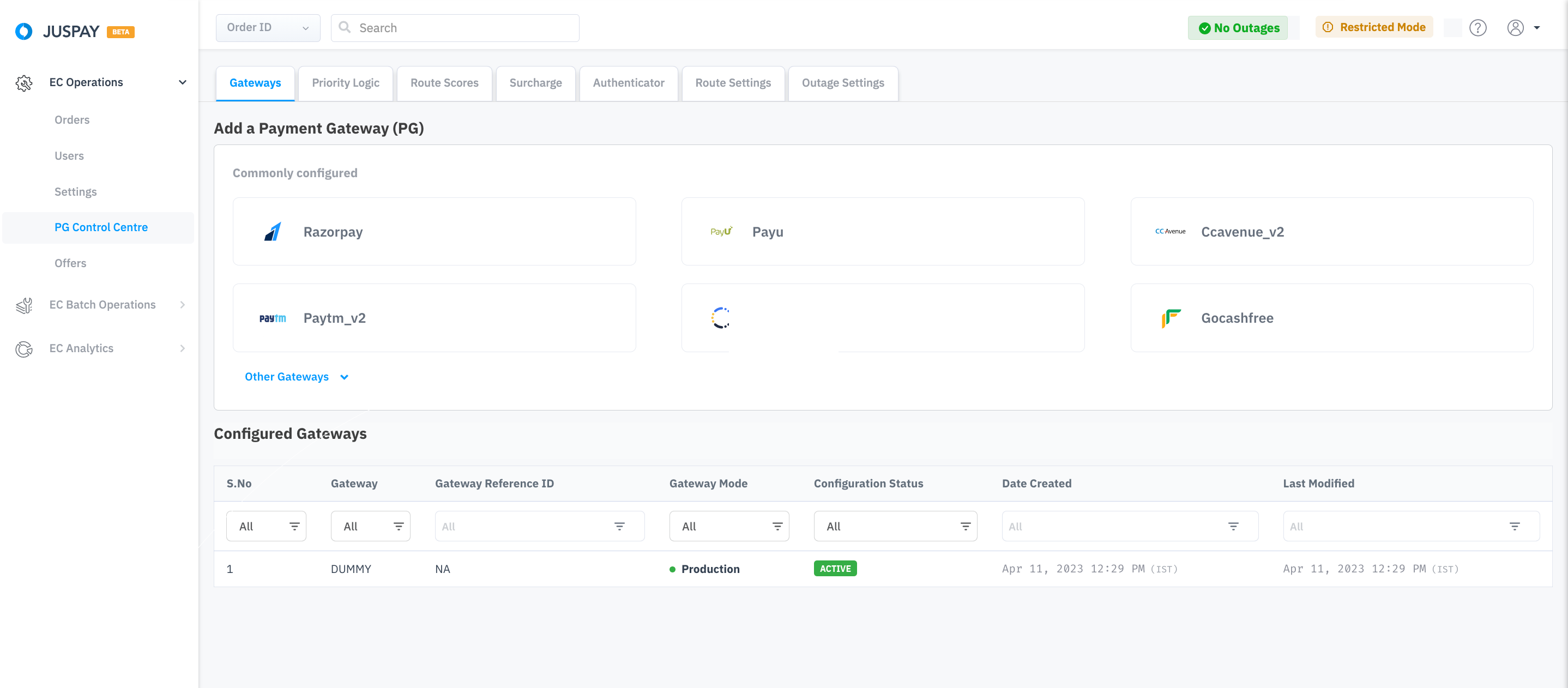

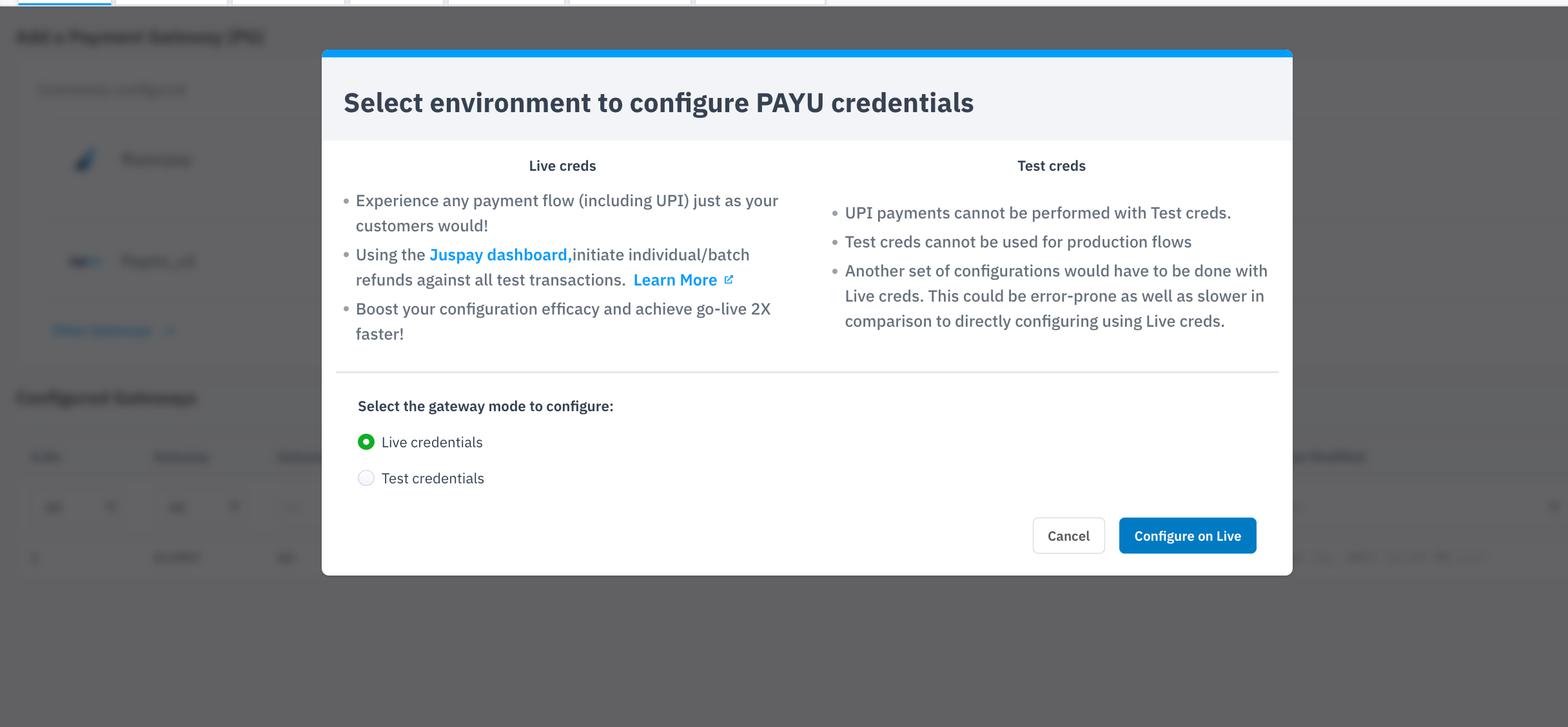

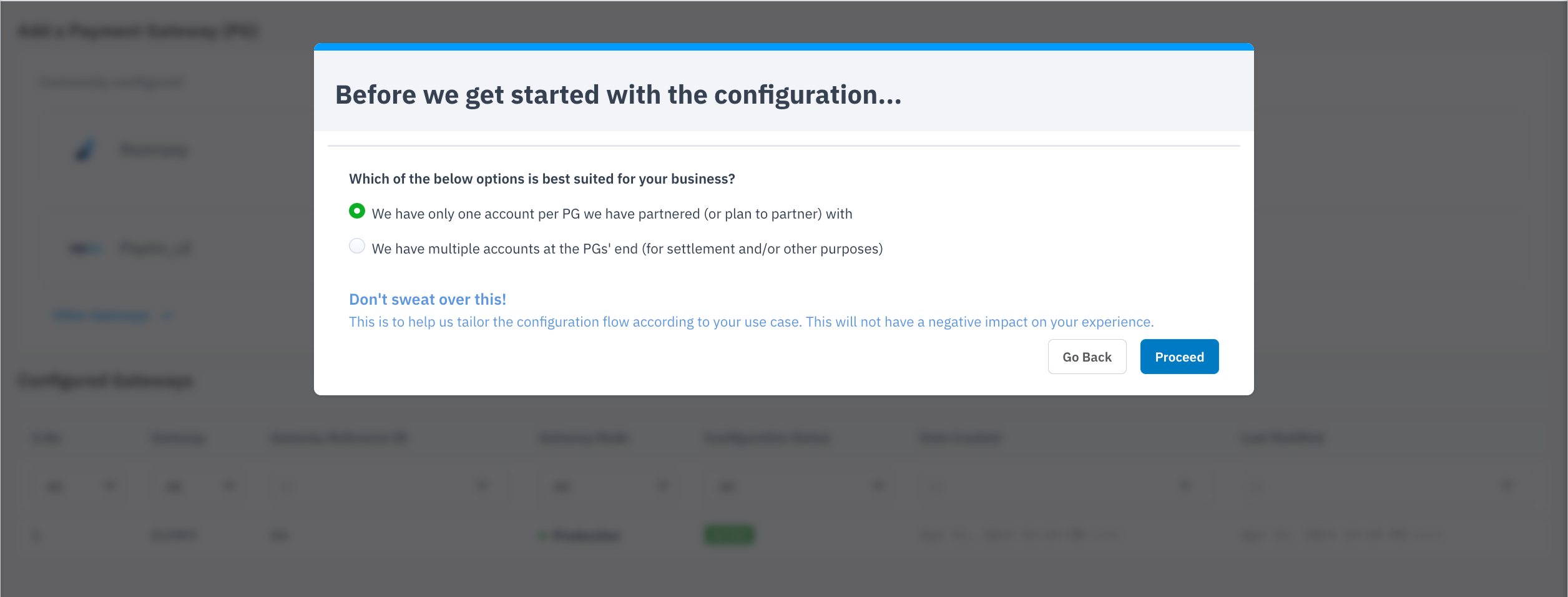

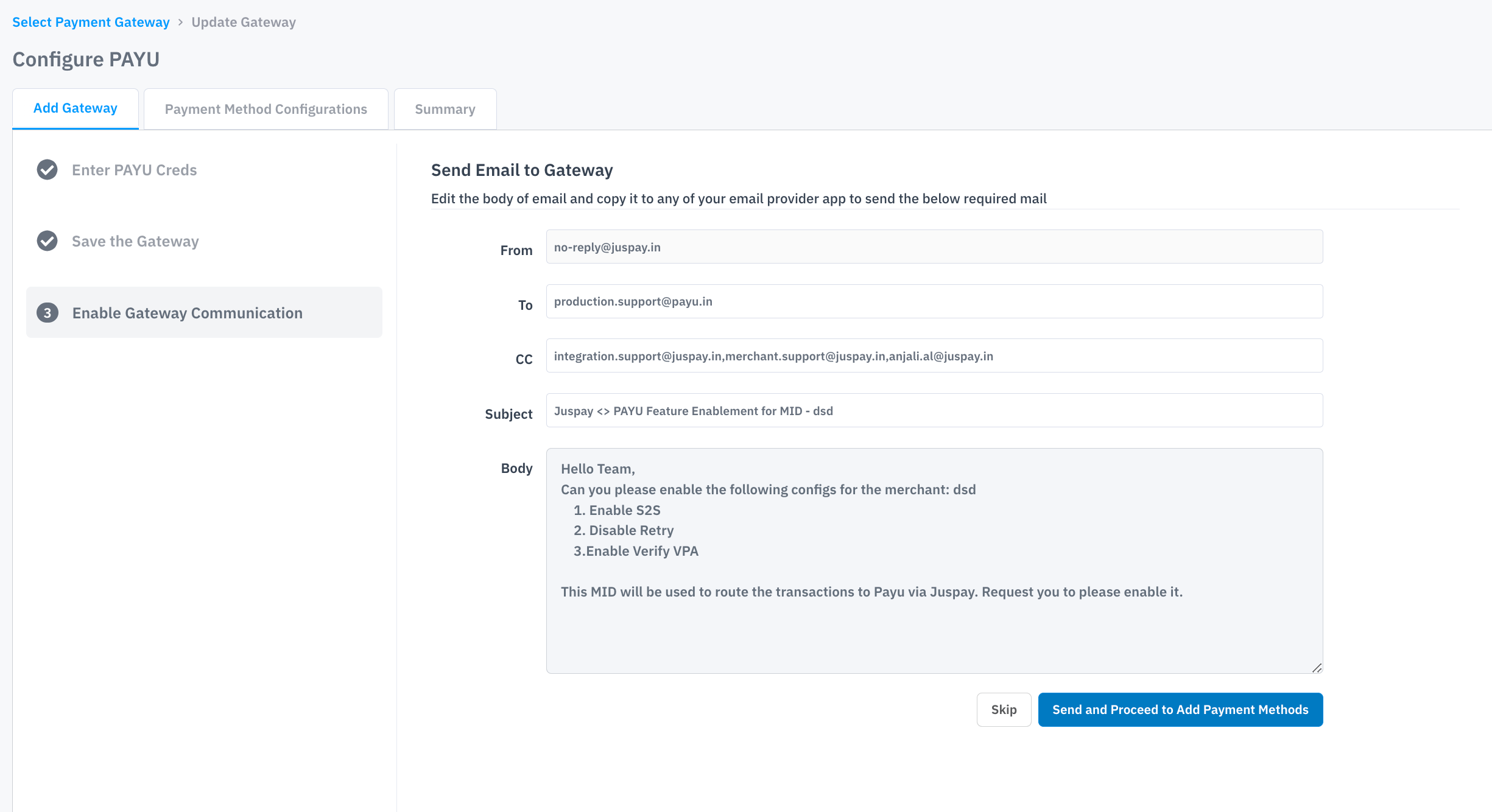

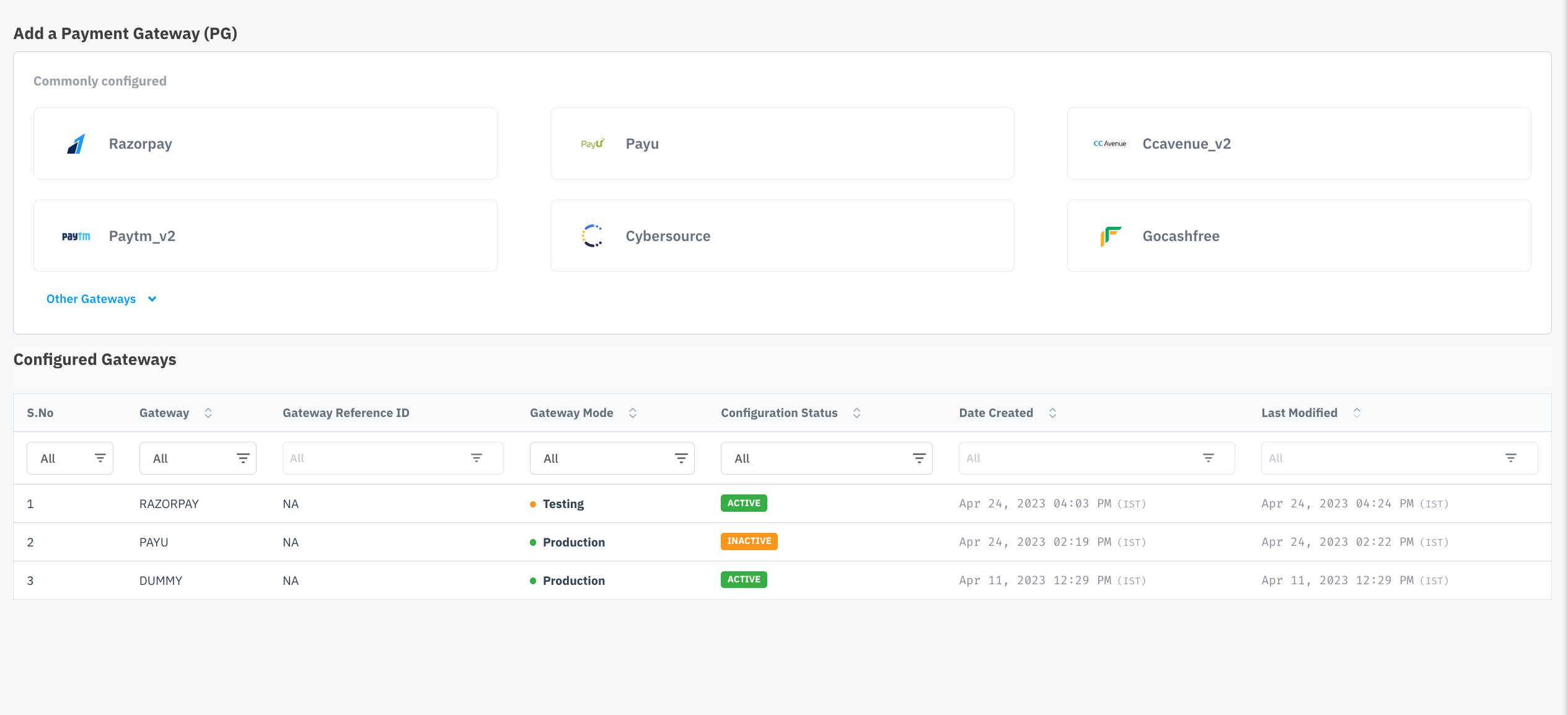

    Upon clicking the gateways tab, the user can select the payment service providers (aggregator, bank PG, wallets, containers or lending products) that need to be enabled

    • The merchant should procure the credentials from the concerned Payment Service provider.
    • Merchant to make sure the payment modes (a card, banks, UPI, etc.) are enabled by the service
      provider
    • If a merchant wishes to enable direct debit for wallets or S2S flow then make sure those features are approved and enabled for the merchant’s account

    Refer Annexure 1 for credentials that are given by various service providers

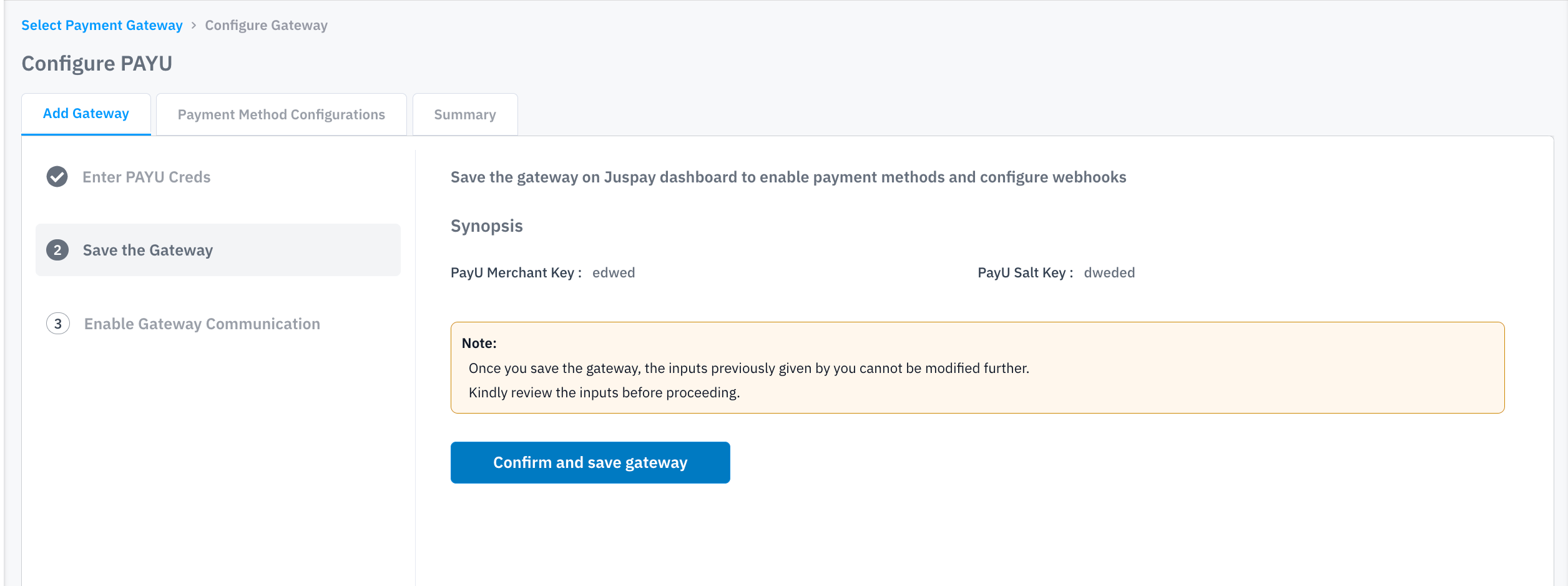

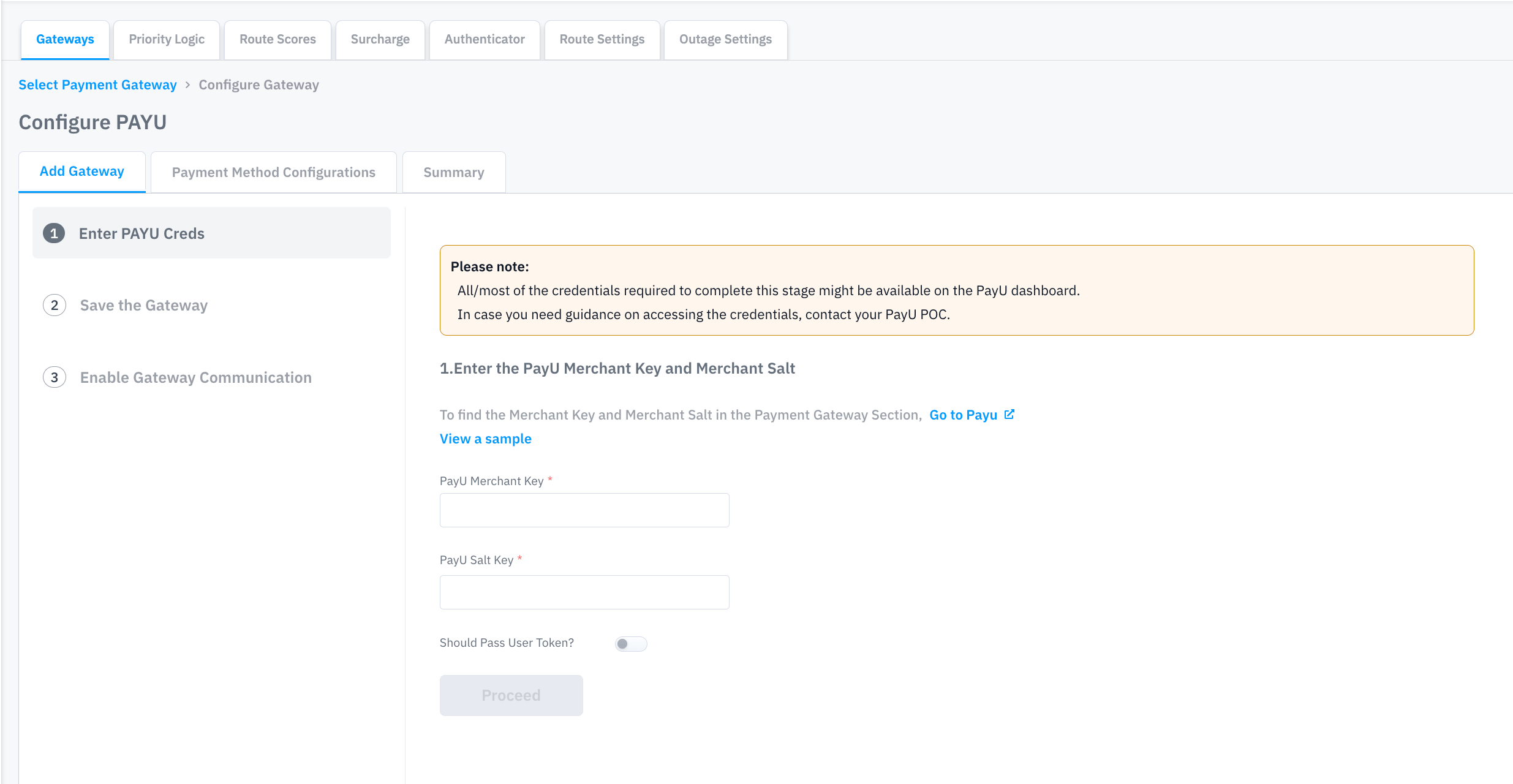

    Configuration - Sample

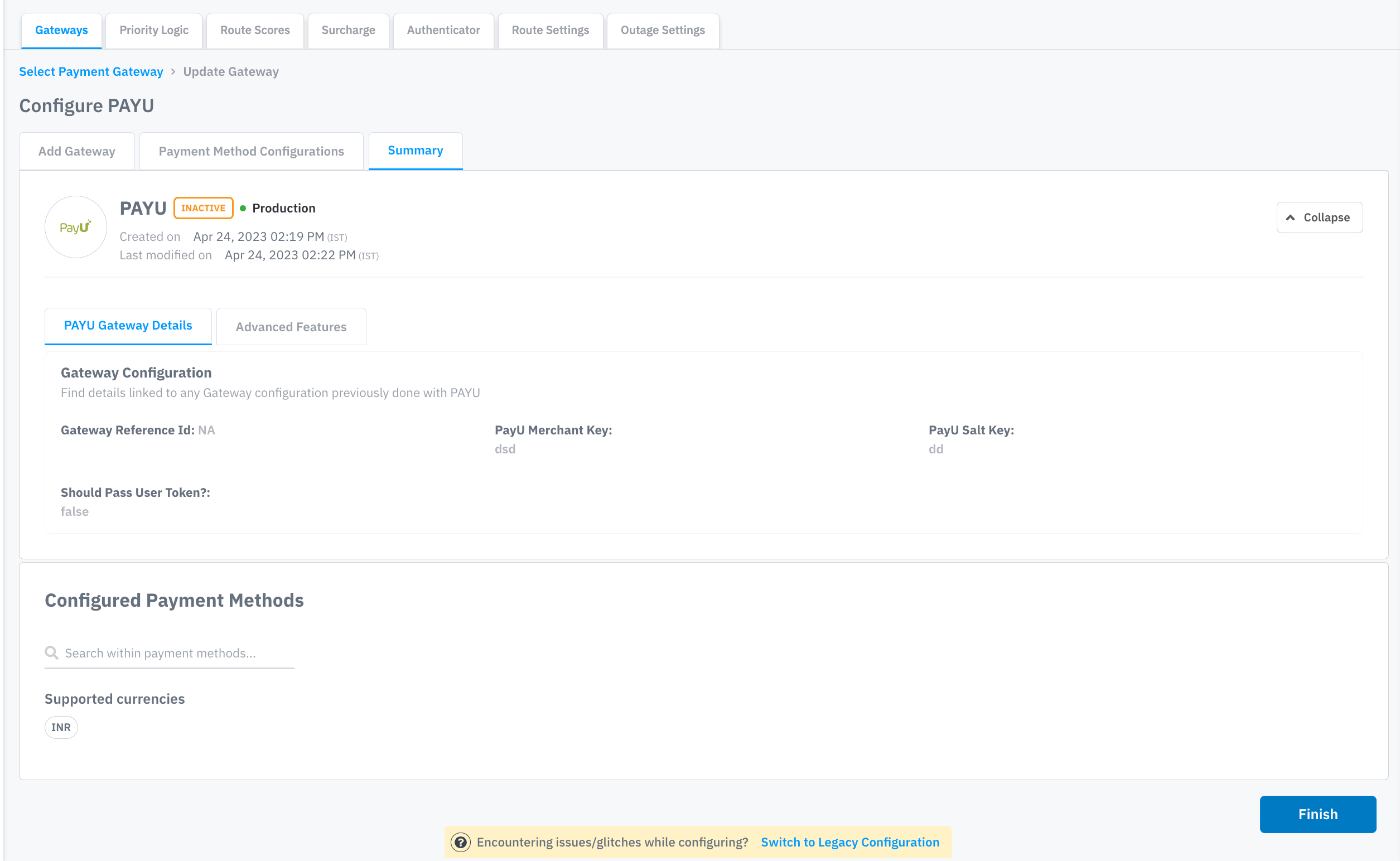

    Above is the configuration of Pay.

    • Merchant has to enter the credentials: Salt, Merchant key
    • If the merchant wants to enable EMI then toggle the Fetch EMI Plans to ‘True’

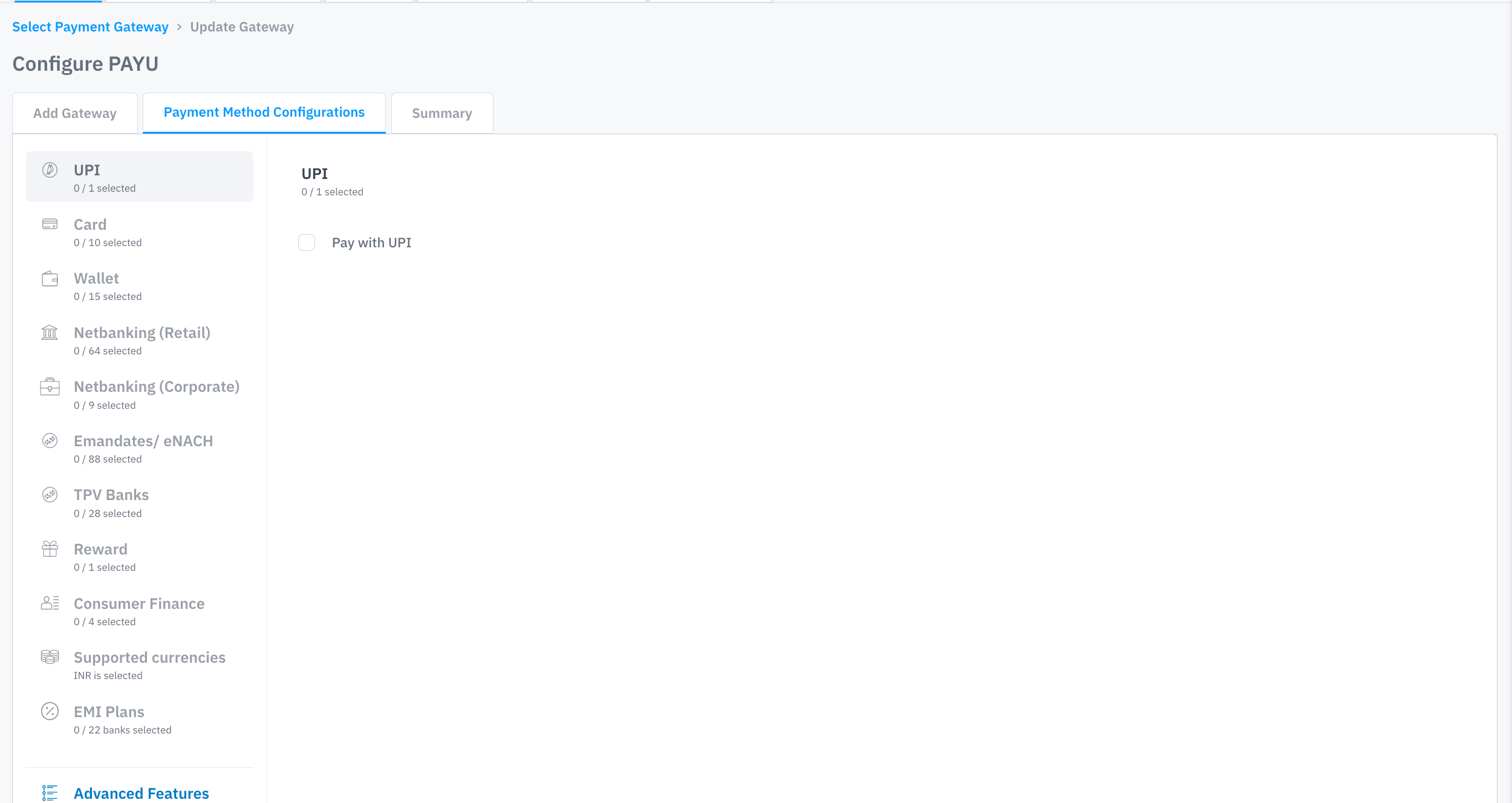

    Once done, the merchant has to enable the payment instruments, banks and Save gateway.

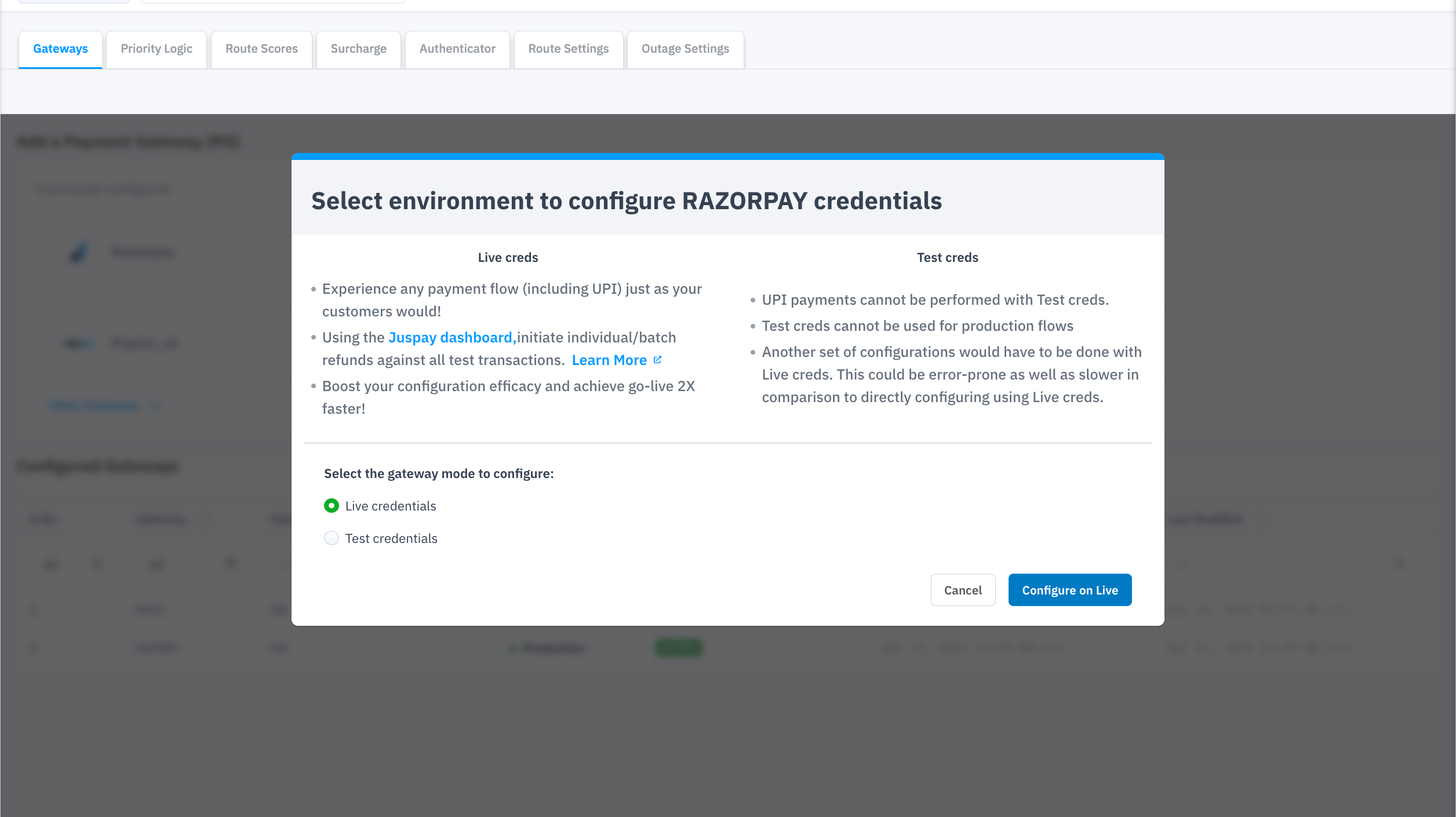

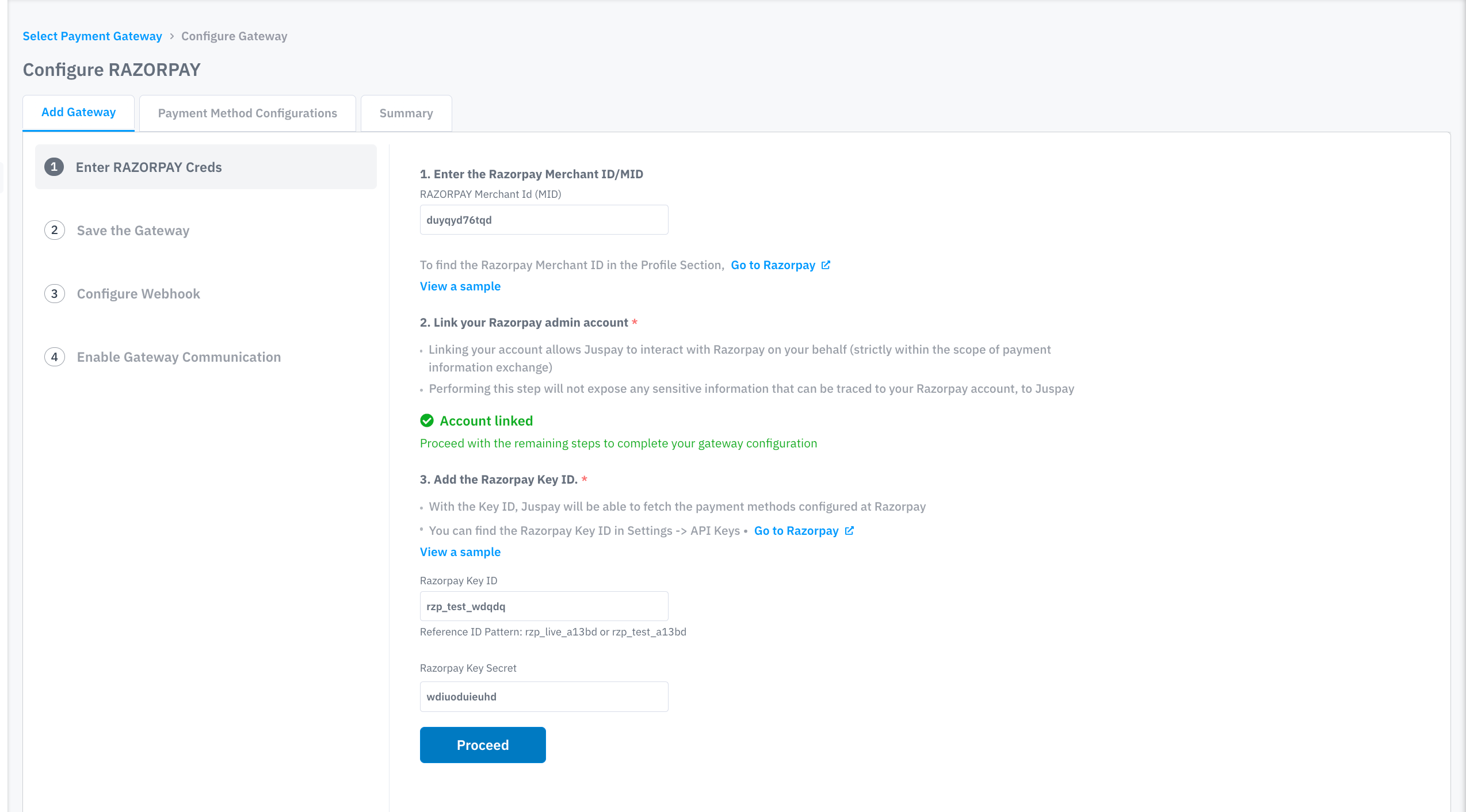

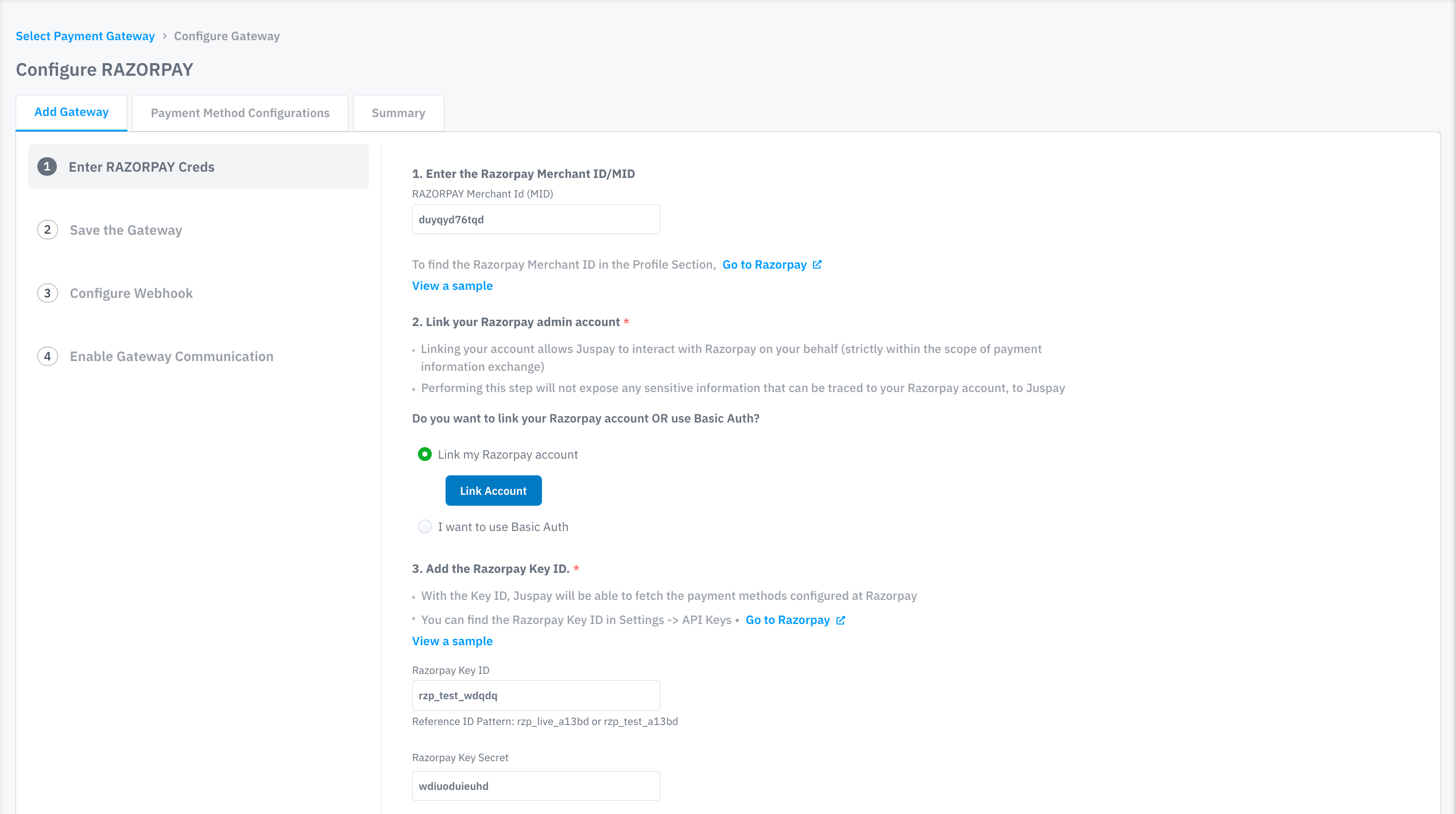

    Razorpay oAuth Configuration

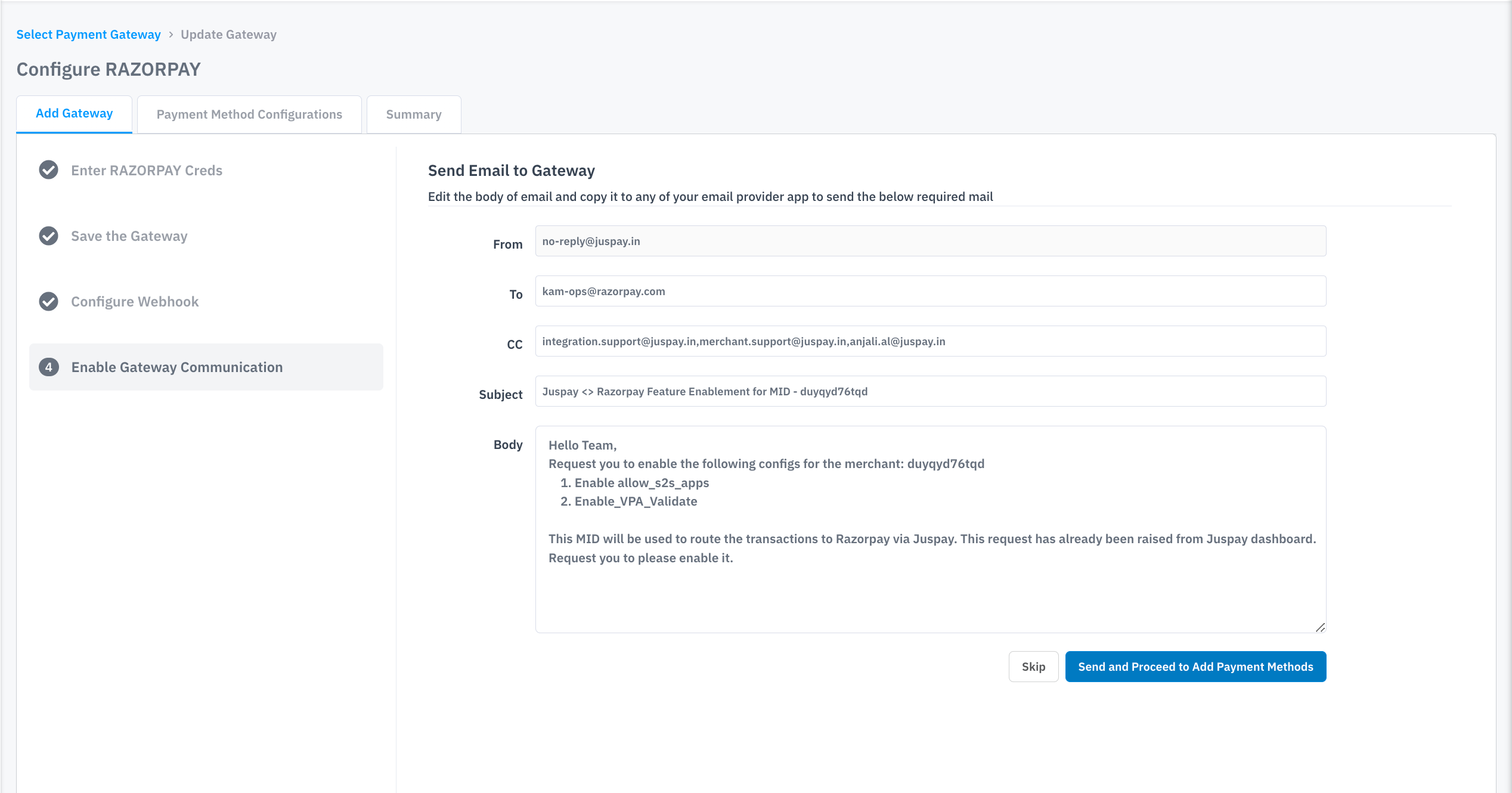

    Click on Create Gateway from the GATEWAY section and choose RAZORPAY
    Set the test mode based on the environment to which the transaction has to be routed
    Click on "Authorize"

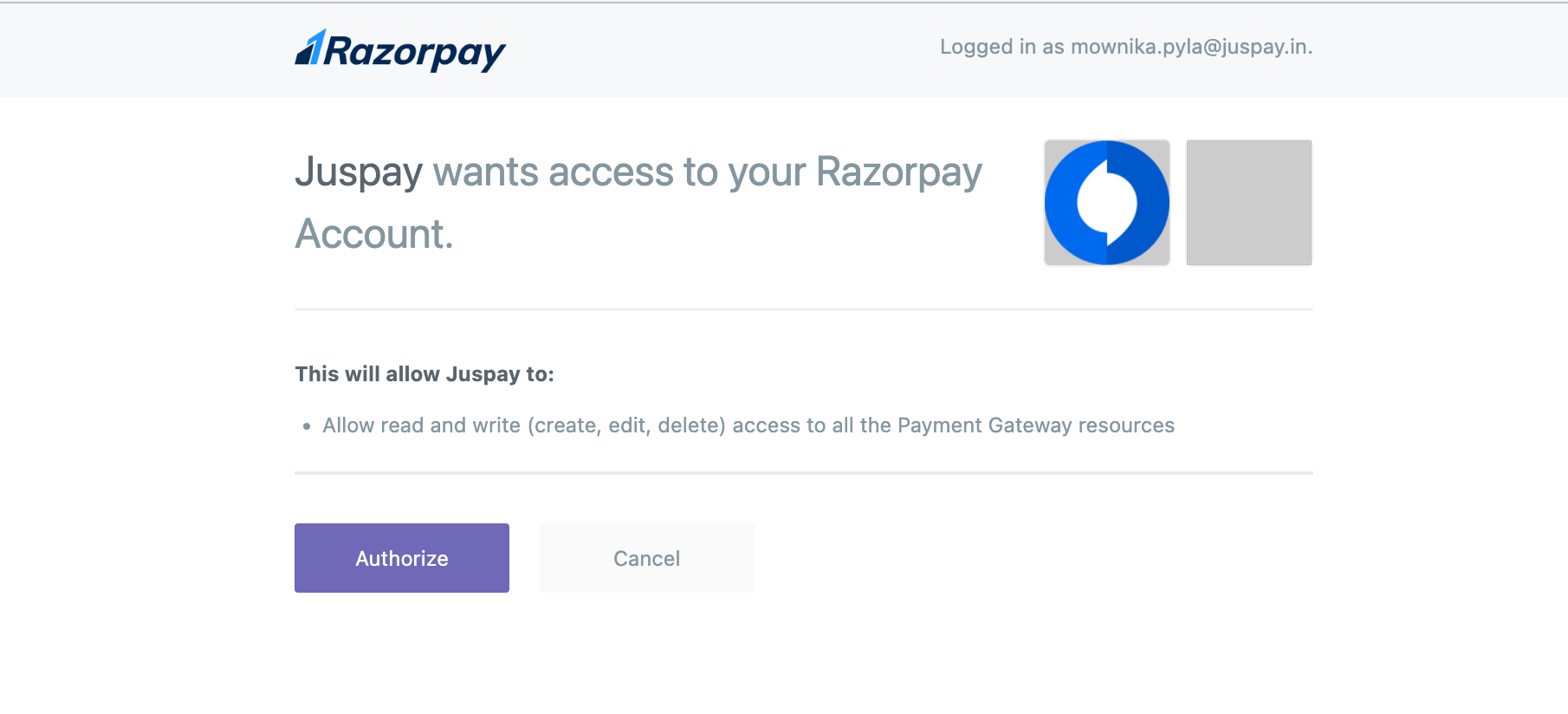

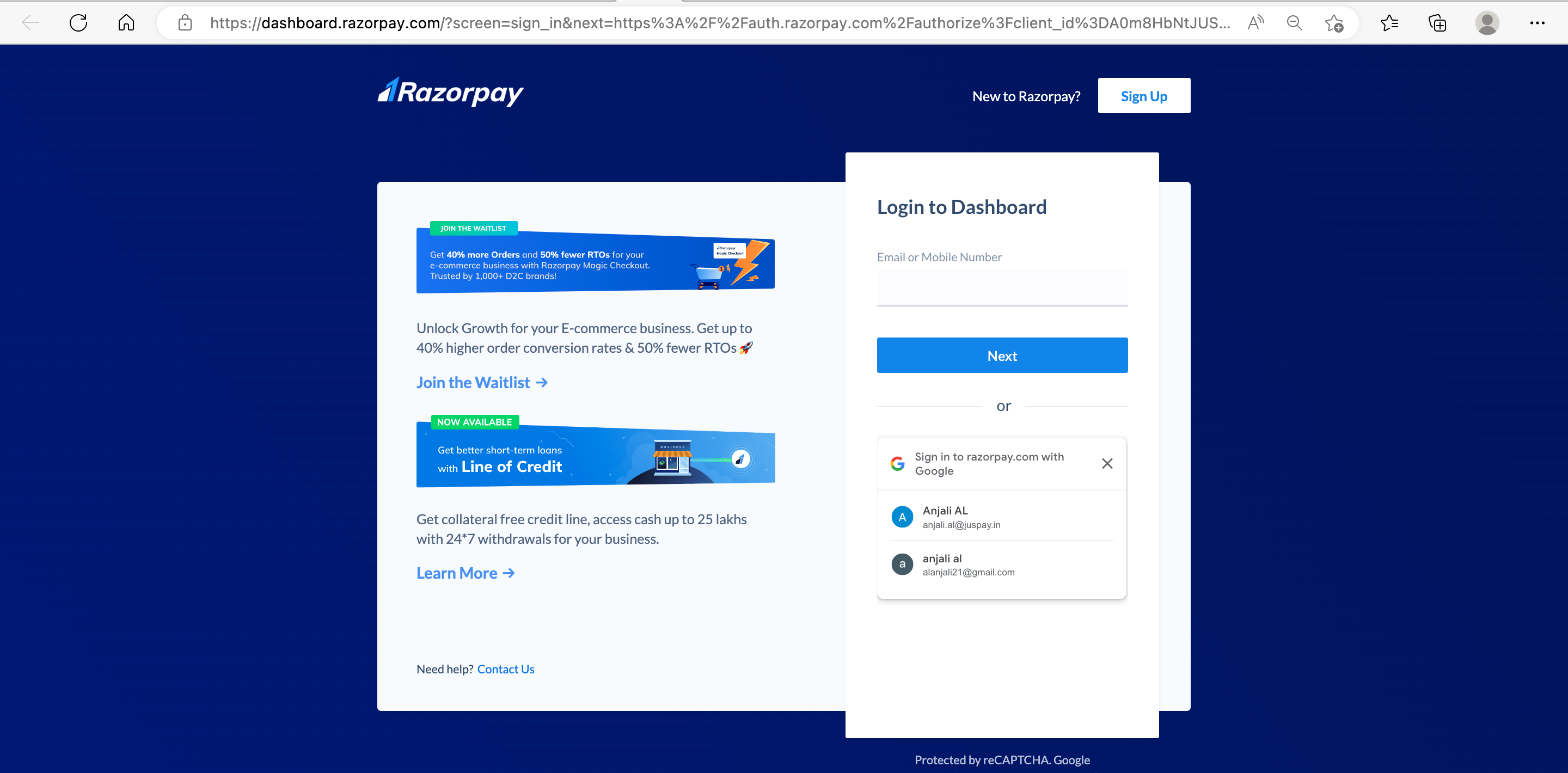

    You will be redirected to Razorpay dashboard.
    Tick the Terms & Conditions check box and click on "Authorize"

    Login to with the Razorpay dashboard credentials

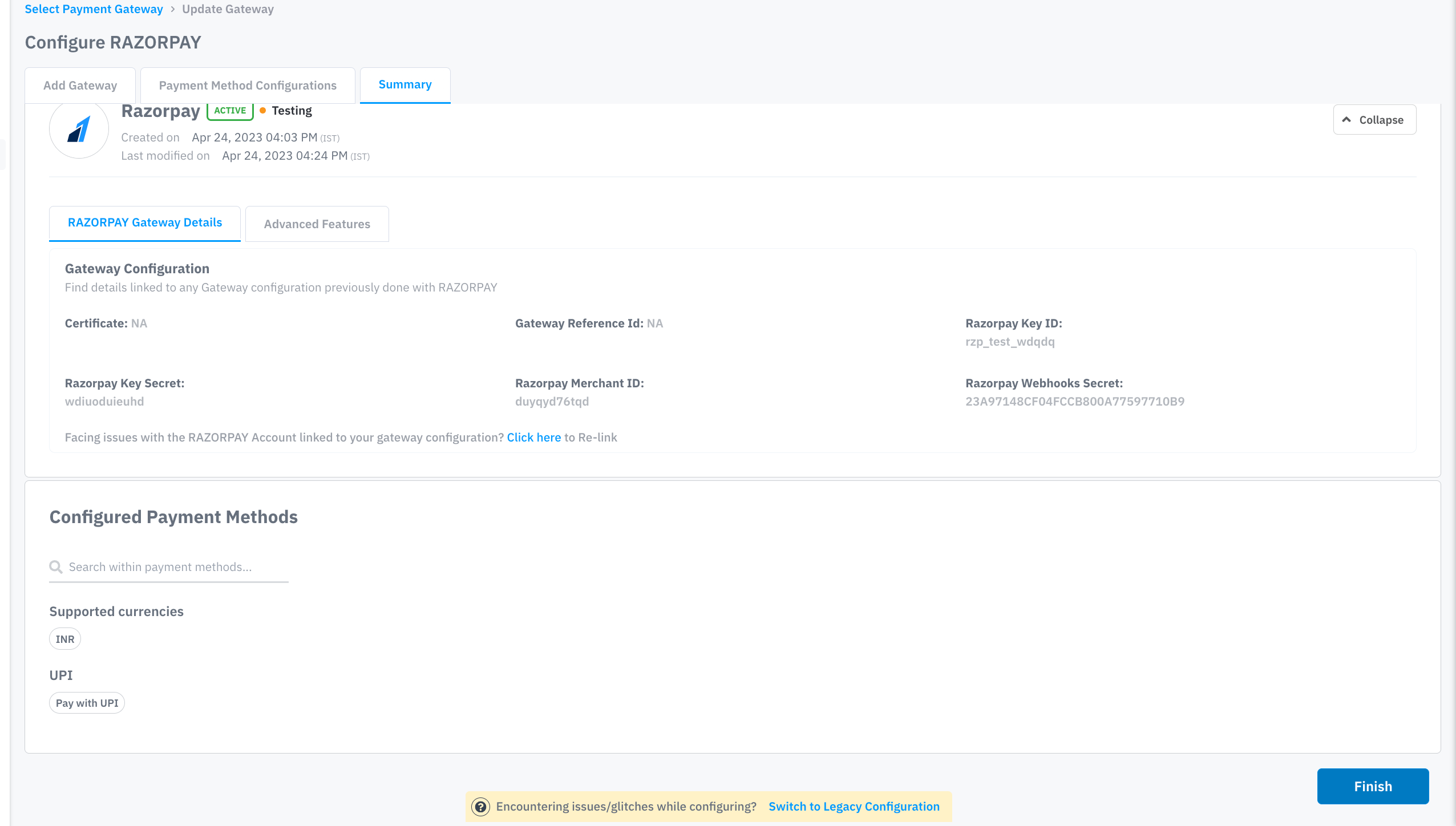

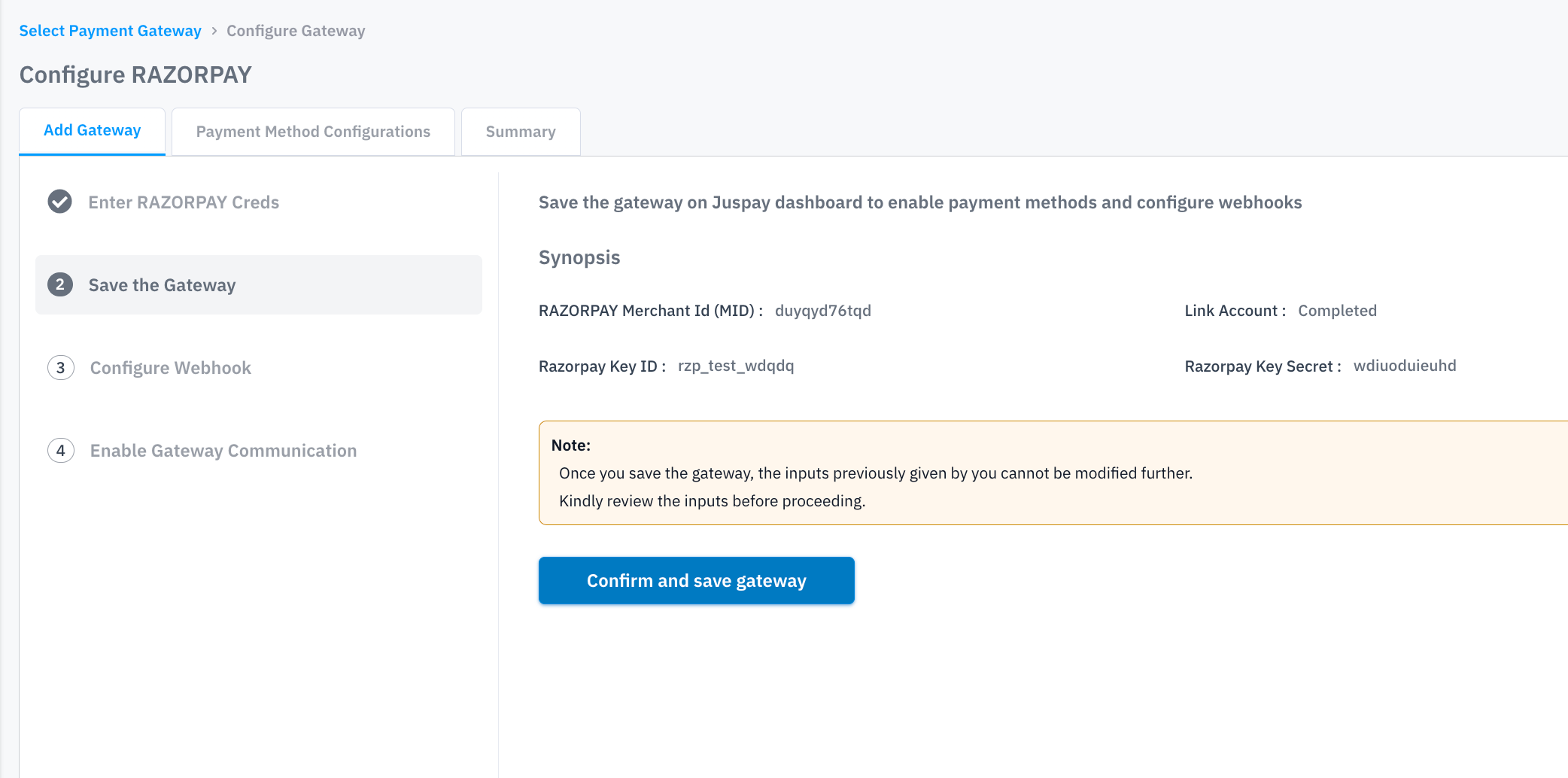

    After successful login, you would be redirected back to Juspay panel. Enable the required fields based on business use case and click on Proceed to Configuration

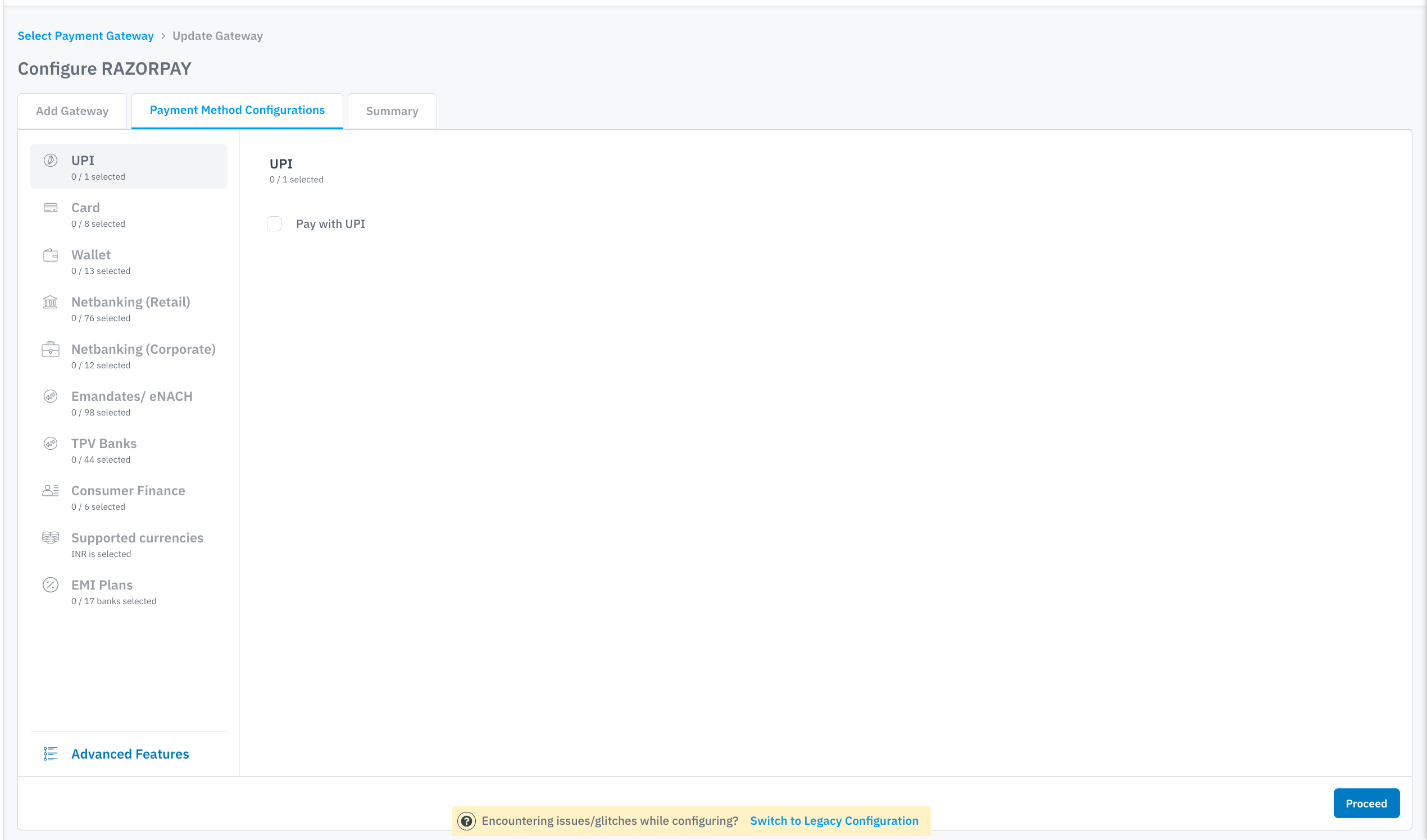

    Enable the required payment modes and save gateway

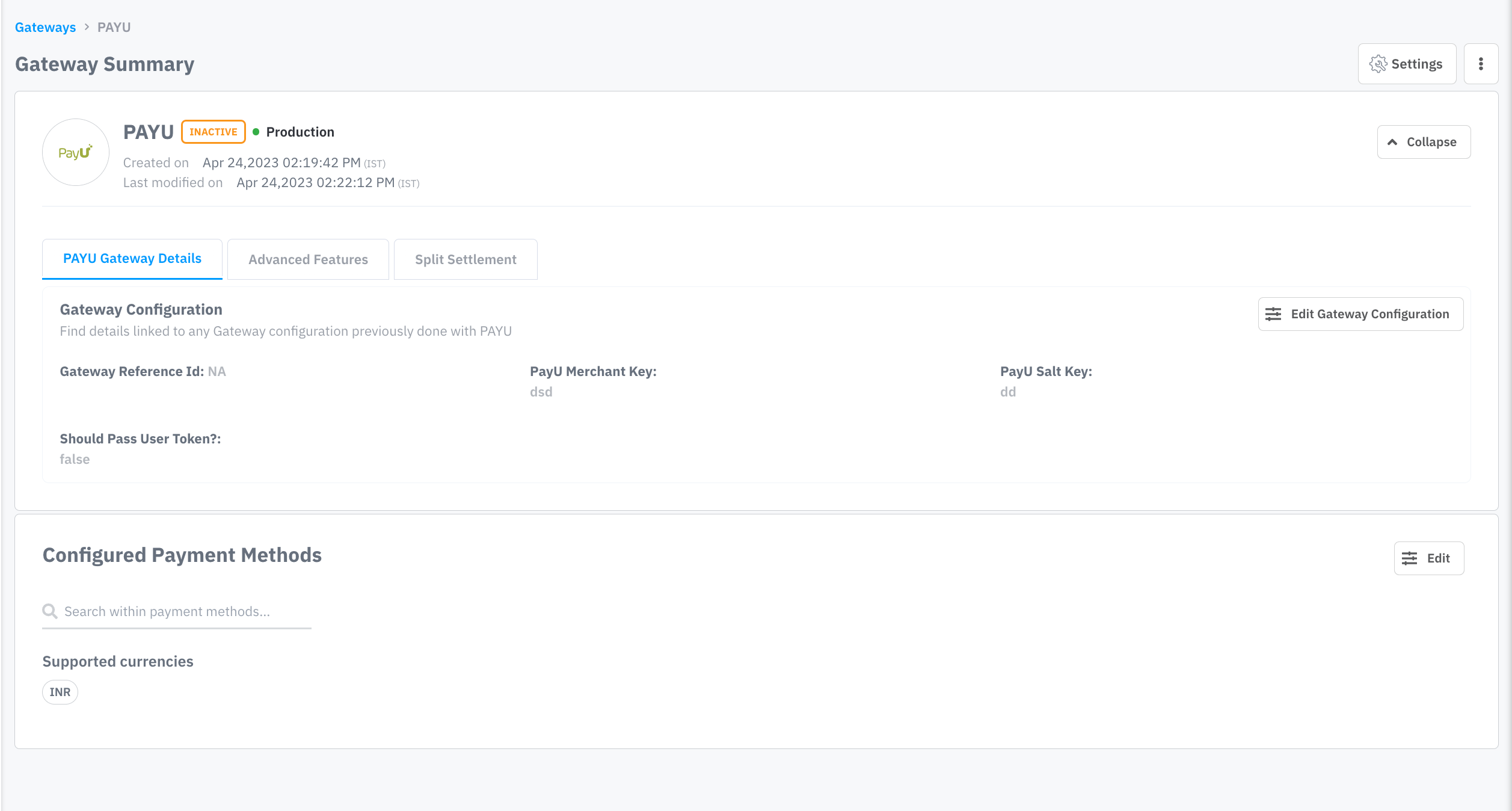

    View and Edit

    Merchant can view the configured gateways for the account and edit the gateway configuration ( enable/disable banks) based on business needs.

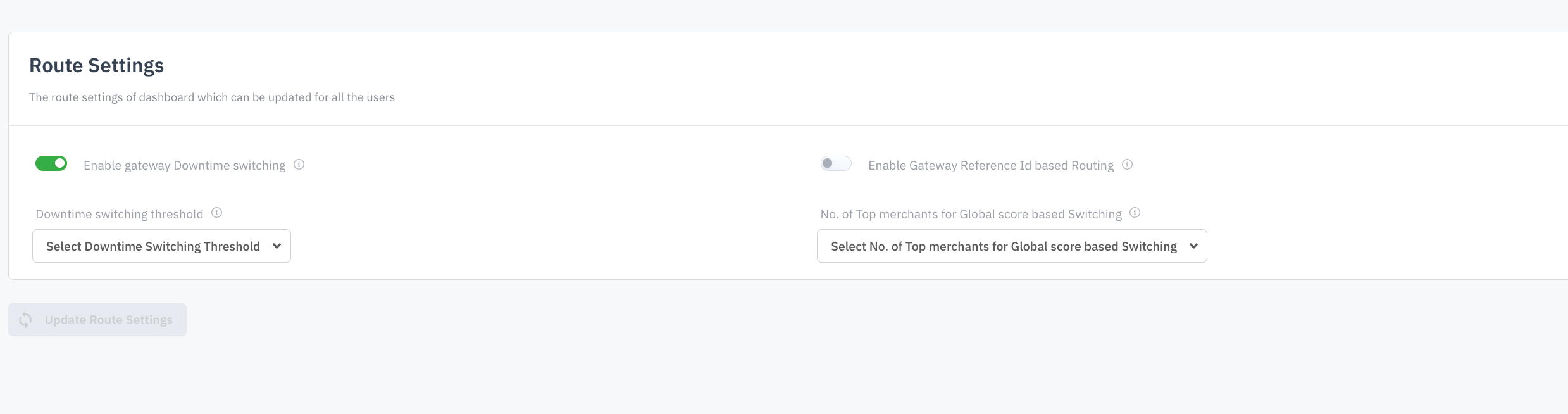

    Route Scores

    The merchant may want to force to route certain cards to a particular gateway (force routing). Merchant can
    use this section to configure such force routings and that will ignore the routing logic. For more clarity
    refer below section that covers types of routings and use cases.

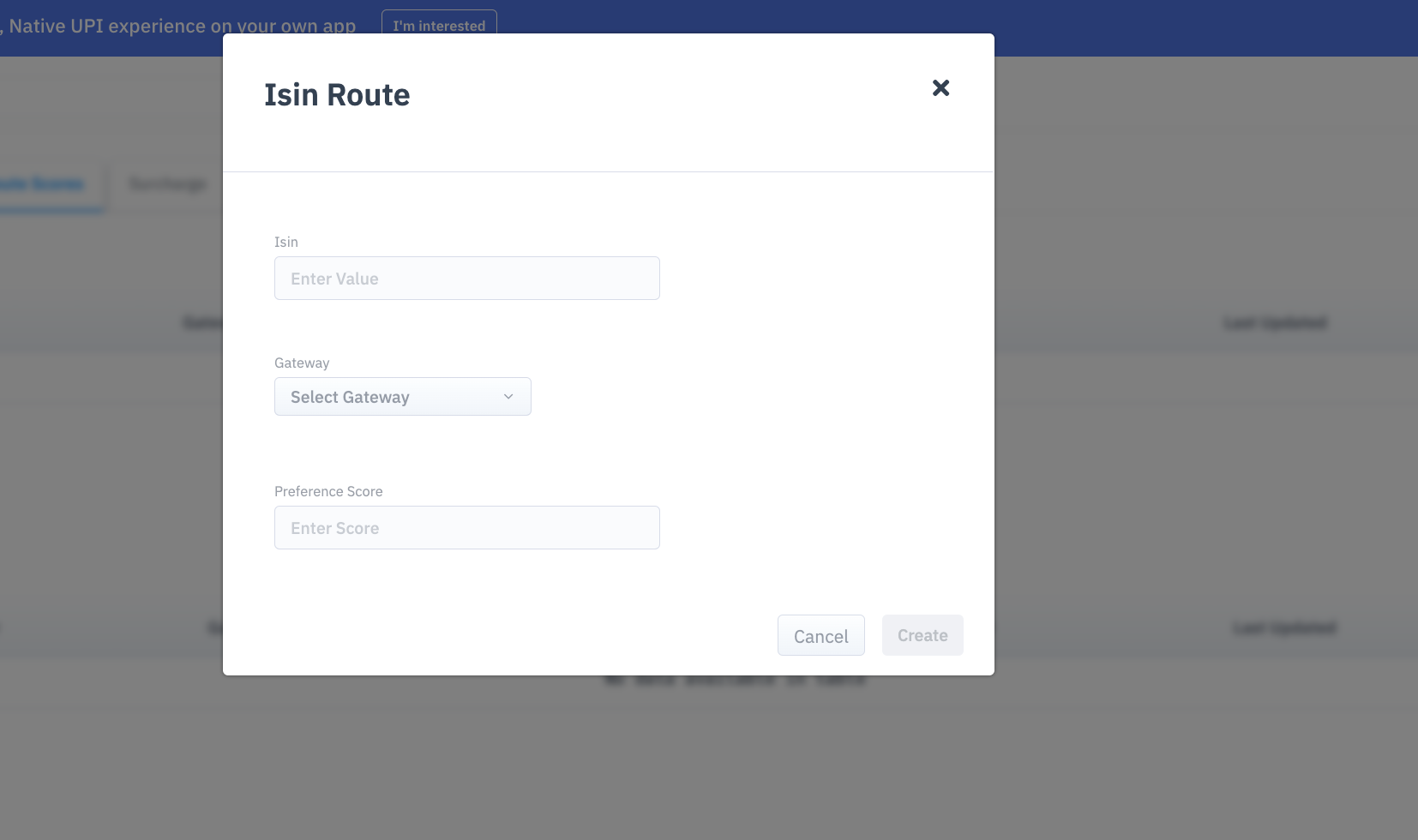

    ISIN Route

    ISIN (Issuer Identifier number or BIN number i.e. first 6 digits of the bank. Merchant can configure BINs that needs to be processed through the specific payment provider

    Use Case: HDFC is offering a discount on few BINs and merchant has to use only HDFC bank PG to process it. Merchant can configure those BINs (ISIN) and select HDFC gateway and set preference score to 2.

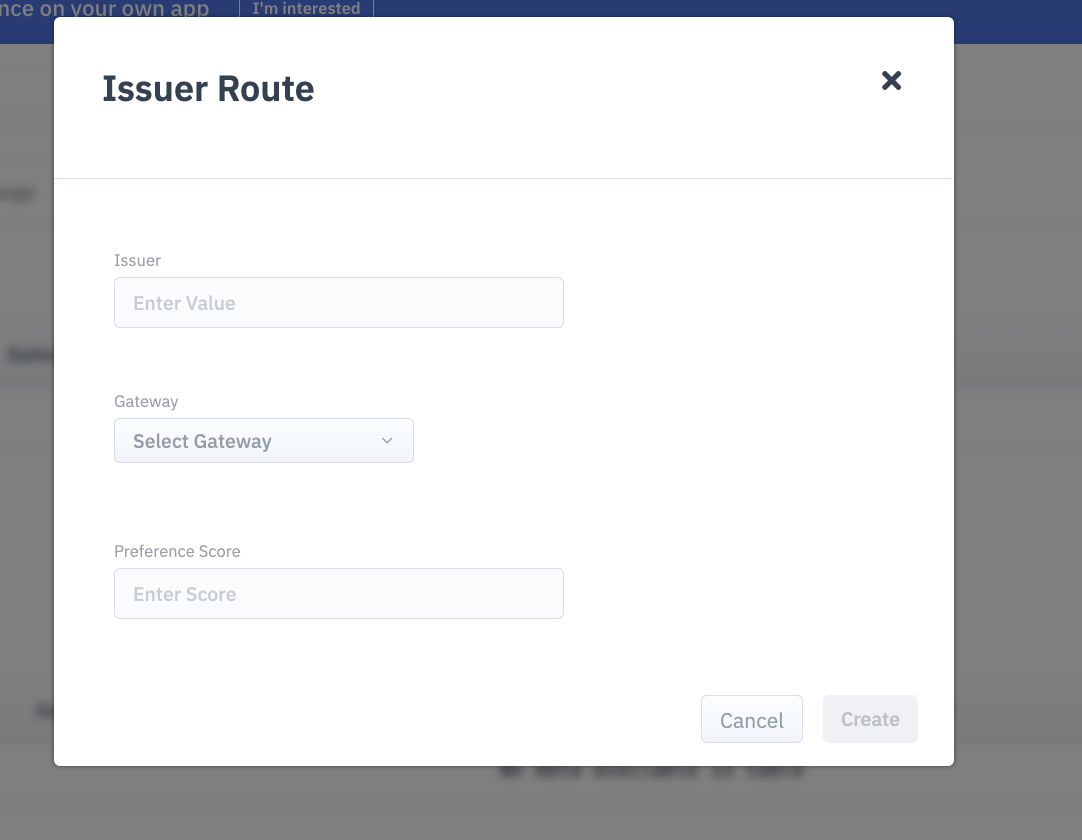

    Issuer Route

    Merchant can configure issuing bank and select the gateway for force routing by setting preference score to 2.
    Use Case: HDFC is running a discount on HDFC cards and merchant has to process cards only through HDFC PG.

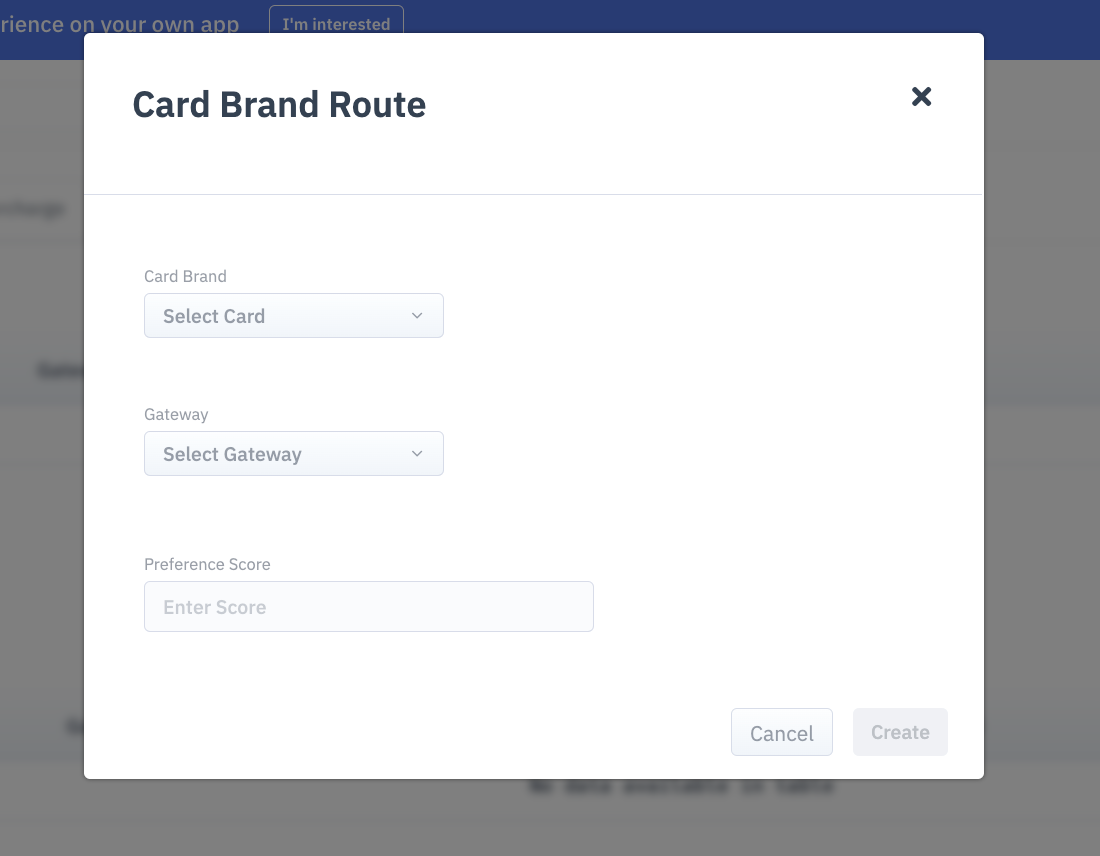

    Card Brand Route:

    If the merchant wants to force to certain card brands (Visa, MasterCard, Maestro, RuPay) through a
    particular PG only then merchant to select the card brand and processing gateway and set preference score to 2.
    Use Case: Diners card is processed only by HDFC PG. In this case, card-based routing will make sure Diners card always go through HDFC PG.

    📘

    Note: Diners can be processed by aggregator who uses HDFC PG as well. This configuration can be done during PG configuration by enabling Diners (provided your aggregator is ready to enable it)

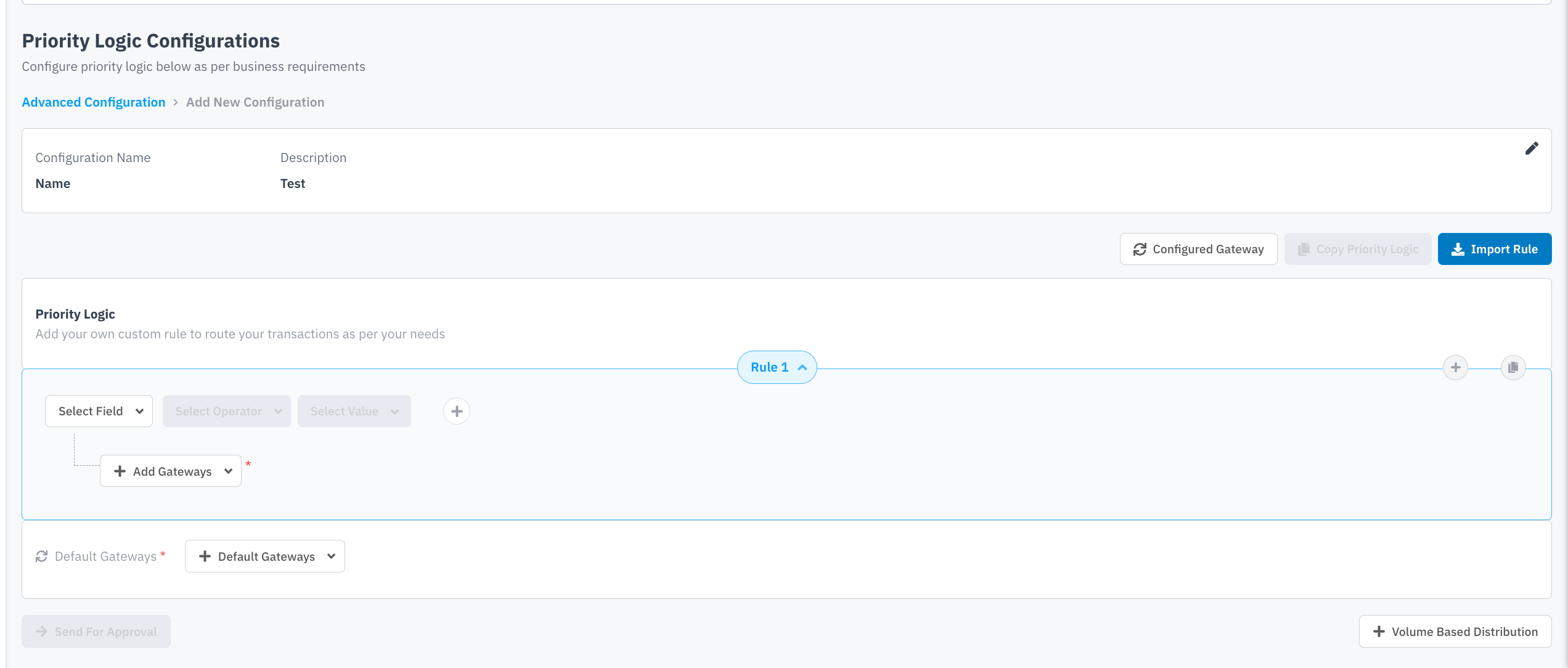

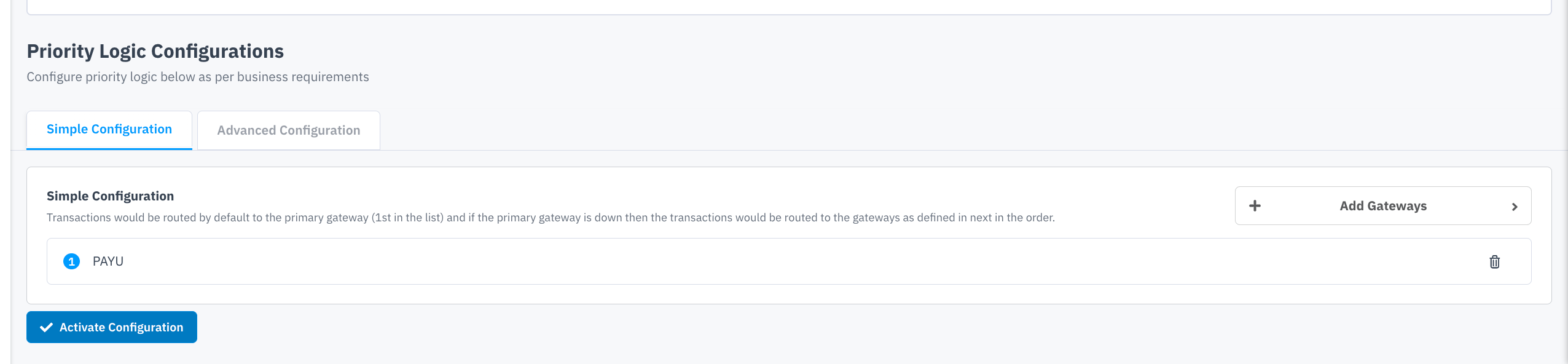

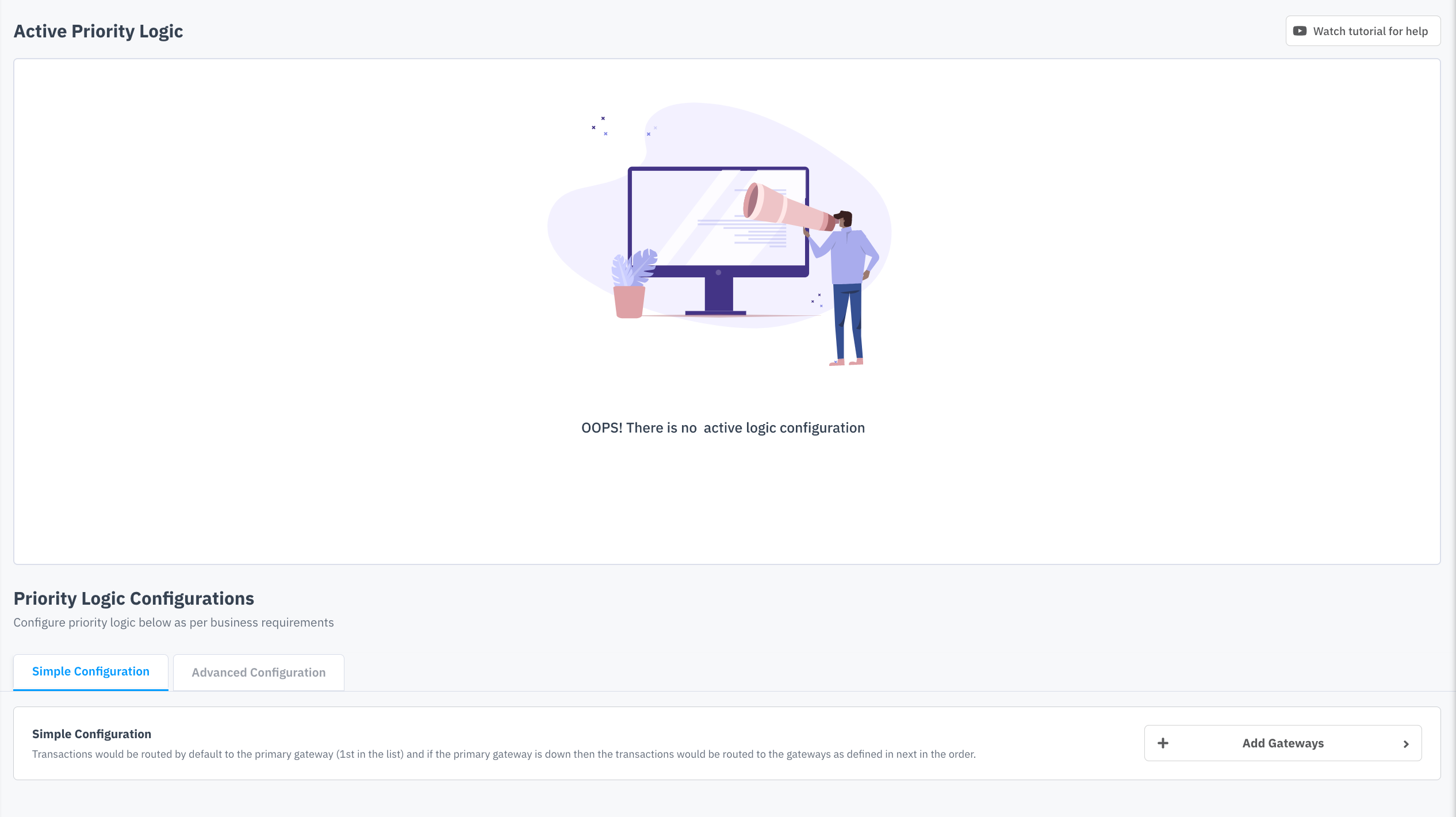

    Priority Logics:

    Select Priority Logics tab under to define routing logic as per business requirement
    Routing logic Merchant can enable two types for routing logic.
    a. Simple Routing
    Merchant will define primary and secondary service providers. In simple words, if Primary is down
    then the transaction will be processed by secondary. Example: If Billdesk is down then Payu will
    process transactions.

    b. Custom Logic
    Depending on business requirements, the merchant can write routing logic
    Few of the possibilities:
    ● Channel-Based: Website, Android, iOS
    ● Volume Based: Split volume between two or more service providers
    ● Bank-based: Send particular bank’s transaction to one service provider
    ● Card type based: Debit or credit card
    ● Card brand based: Visa, MasterCard, RuPay, etc.
    Routing logic can be complex as per your business logic. Example: 30% of website transaction of ICICI
    bank Visa Credit card to be proceeded by PayU as primary and BillDesk as secondary.

    Merchant to click on Create New Logic and write the logic. Refer Annexure 2 for samples.
    ● Merchant can delete or edit/update the logic
    ● Once merchant submits the priority logic, Juspay support team will review the syntax and correctness of logic and then approve it.
    ● Logic will be effective as soon as it is approved by Juspay team

    📘

    Note: Merchant to add comments in the logic so Juspay team can verify the logic written by the merchant does what it is expected to do.

    Setting

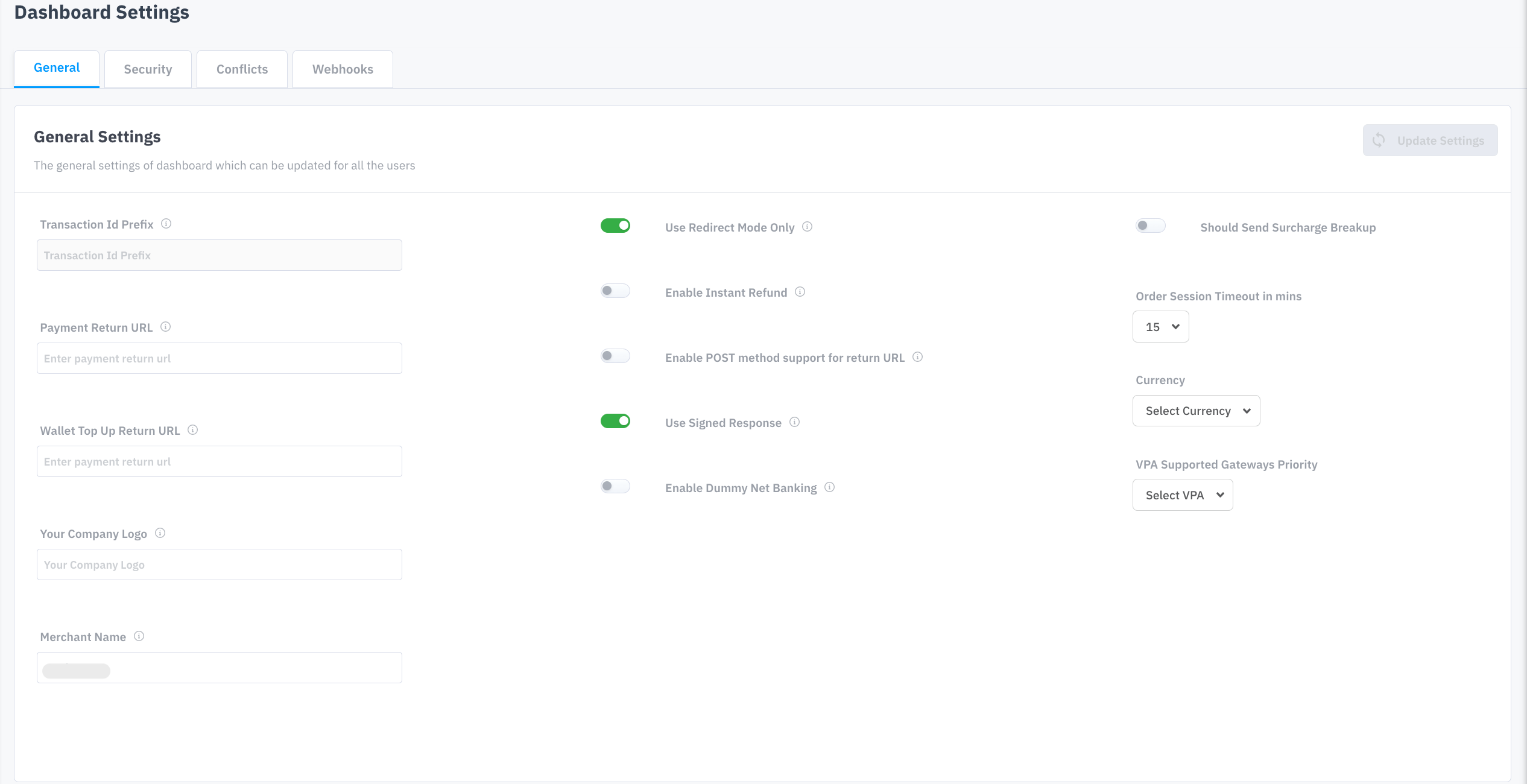

    General

    In this section, the merchant can configure generic settings such as Return URL (return page that is shown after completion of the transaction) or order session timeout, etc.

    📘

    Note: Although it is self-explanatory do not hesitate to consult Juspay team in case of doubts as these are critical configurations.

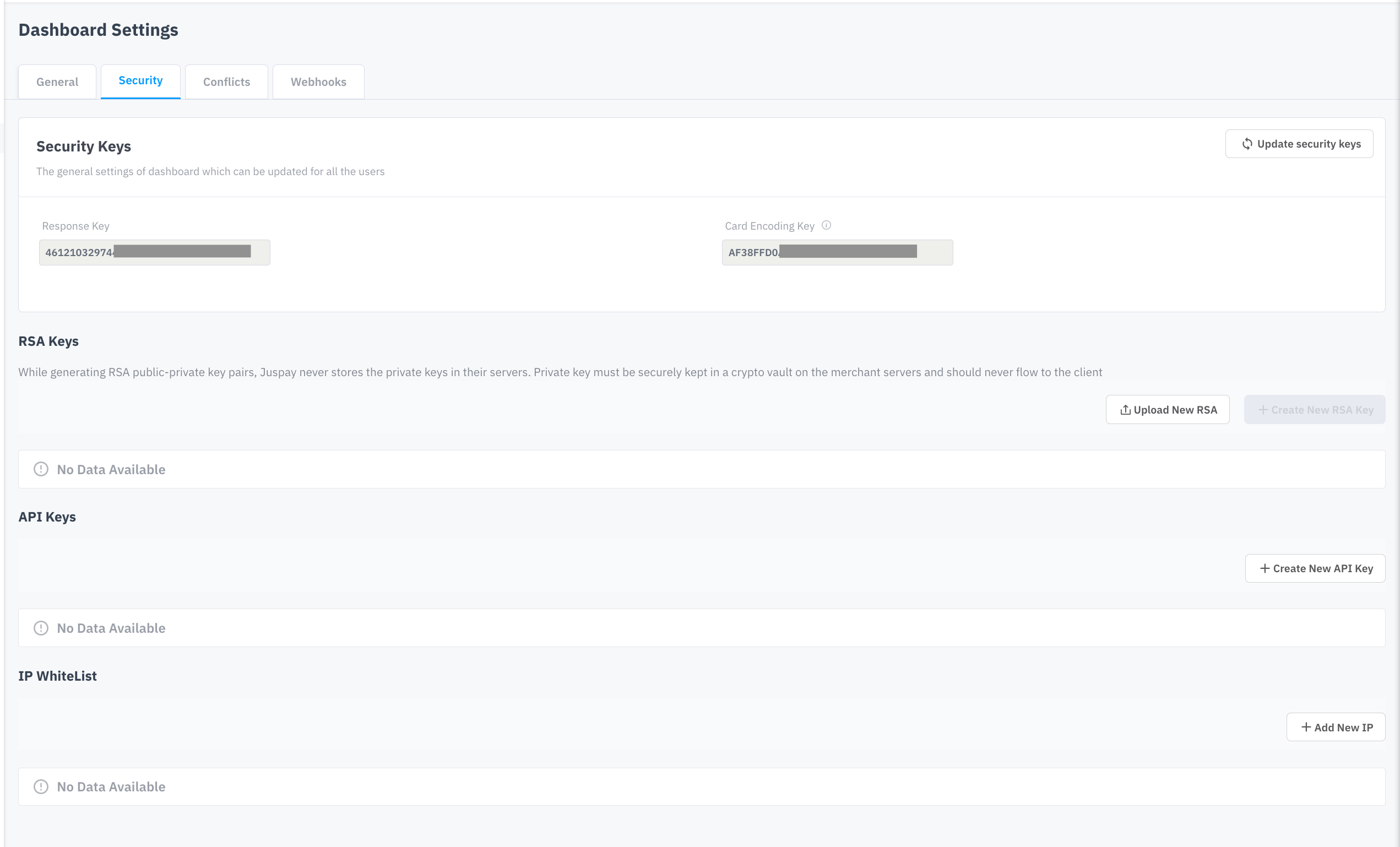

    Security

    Section to add API keys, RSA keys and IP whitelisting.

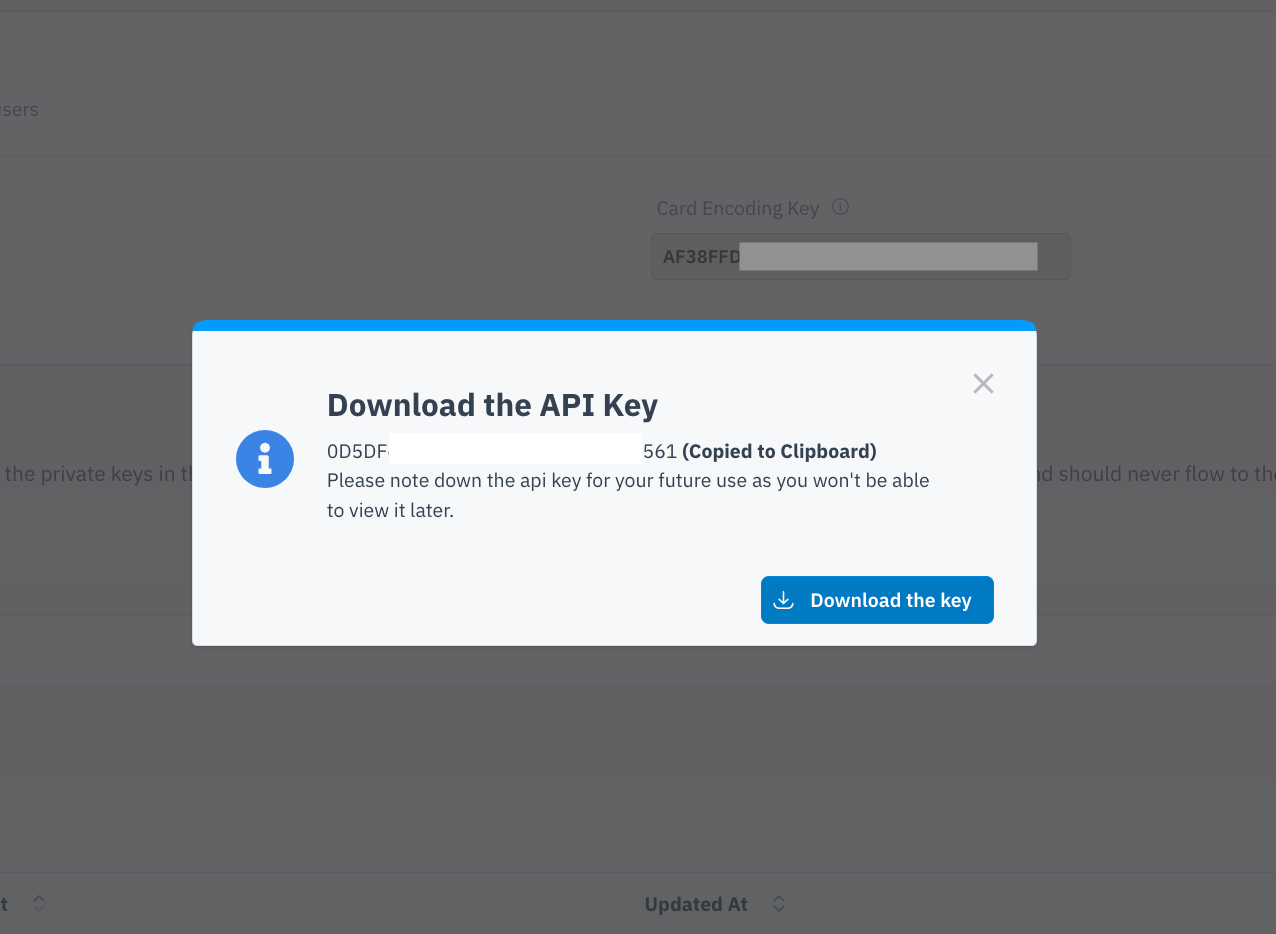

    • The API key required for authentication can be generated by clicking on "Create New API key".

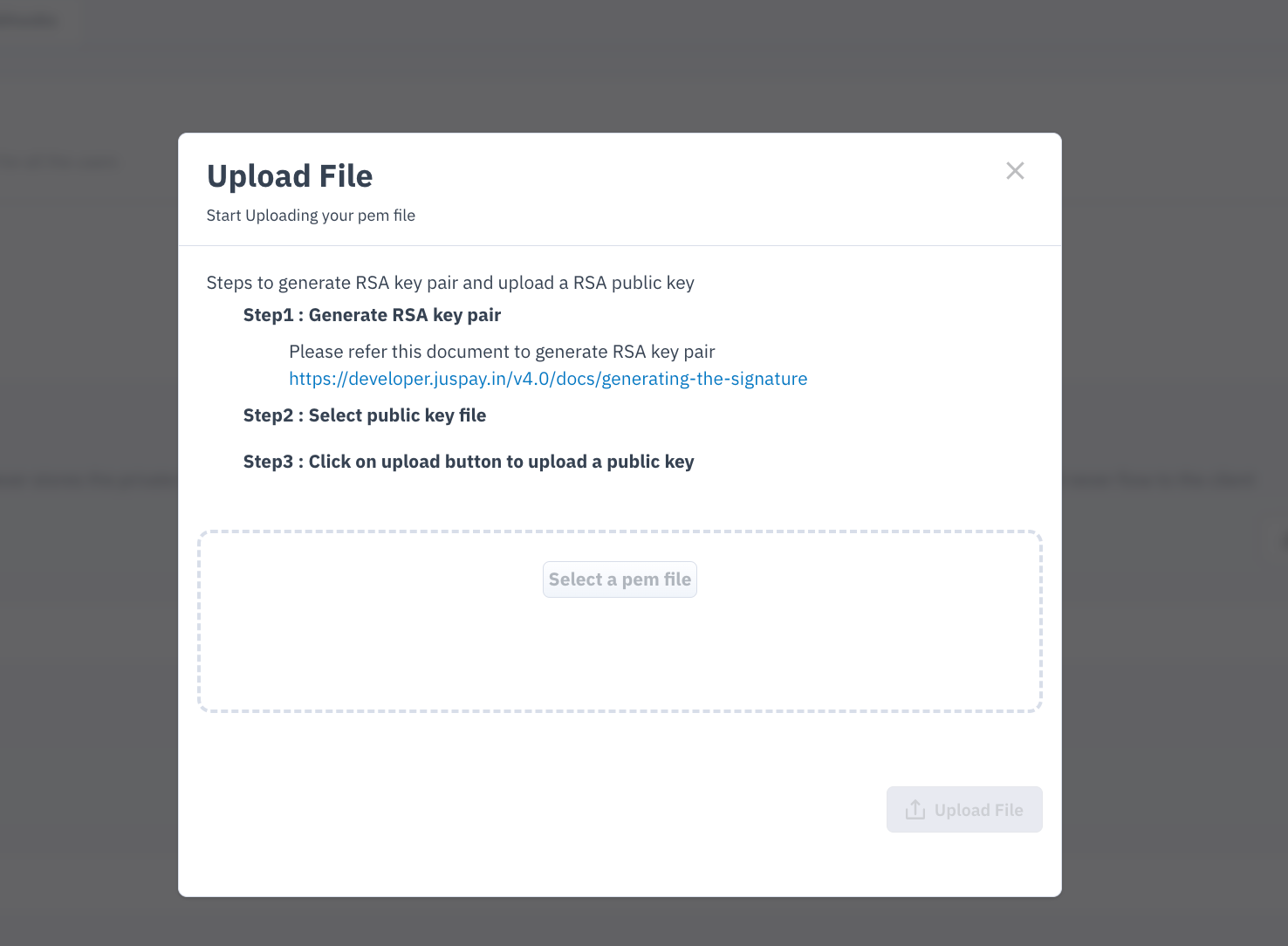

    • For generating the merchantKeyId required for signature generation, click on "Upload new RSA key" and upload the public key in .pem format.

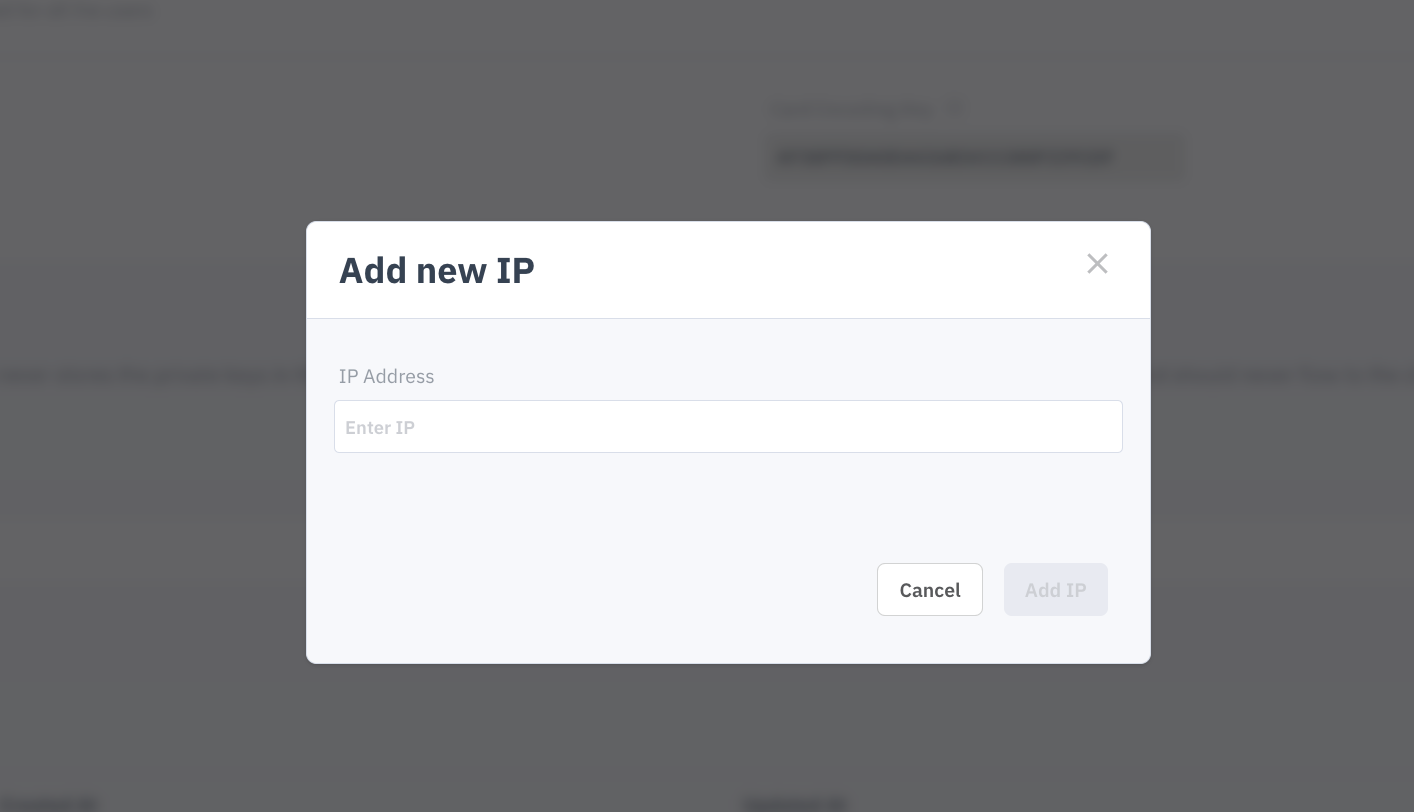

    • For whitelisting the IP's, click on "Add New IP". Kinldy note that once the IP's are whitelisted, the API request from only these IP's would be accepted.

    Response key is used for HMAC Signature verification.
    Card Encoding Key is used for encrypt the card details from the client before initiating the transaction.

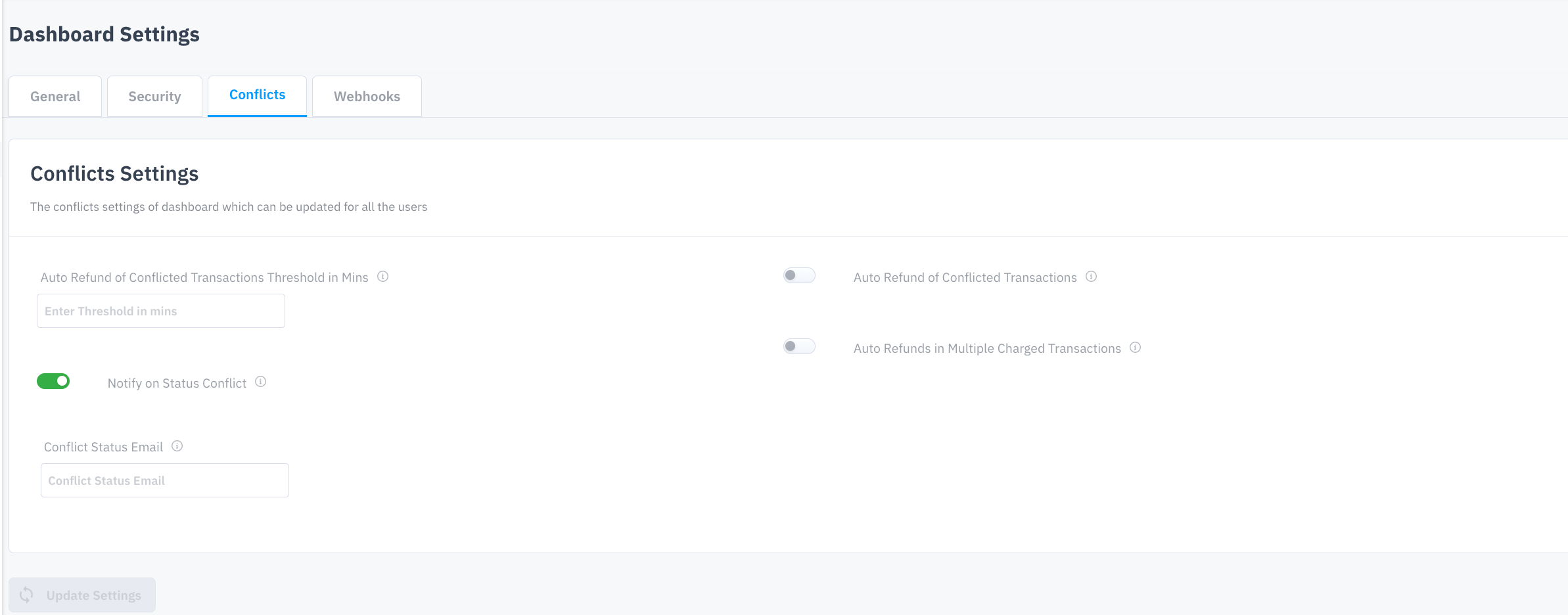

    Conflicts

    It may be possible that transaction status doesn’t reach finite status (success or failure) in real time. Some transaction may go into pending state and become success at a later point of time and these transactions are called ‘conflicted transactions’.

    Juspay will ping the payment service provider to fetch updated status and new status can be pushed to the merchant.

    By enabling ‘notify on status conflict’ and providing a valid email address under 'Conflict Status Email', Juspay would trigger an email notification to the provided email id whenever there is a conflicted transaction.

    'Auto Refund of Conflicted Transactions'- If the merchant wants to automatically refund the conflicted transaction then enable the option (The default threshold is 10 minutes)

    'Auto Refund of Conflicted Transactions Threshold in Mins'- Enter a threshold in minutes beyond that you would want Juspay to automatically refund the transaction. The default threshold is 10 minutes.

    'Auto Refunds in Multiple Charged Transactions'- Enable the flag if Juspay should automatically refund the transaction(s) if there are multiple charged transactions against a single order.

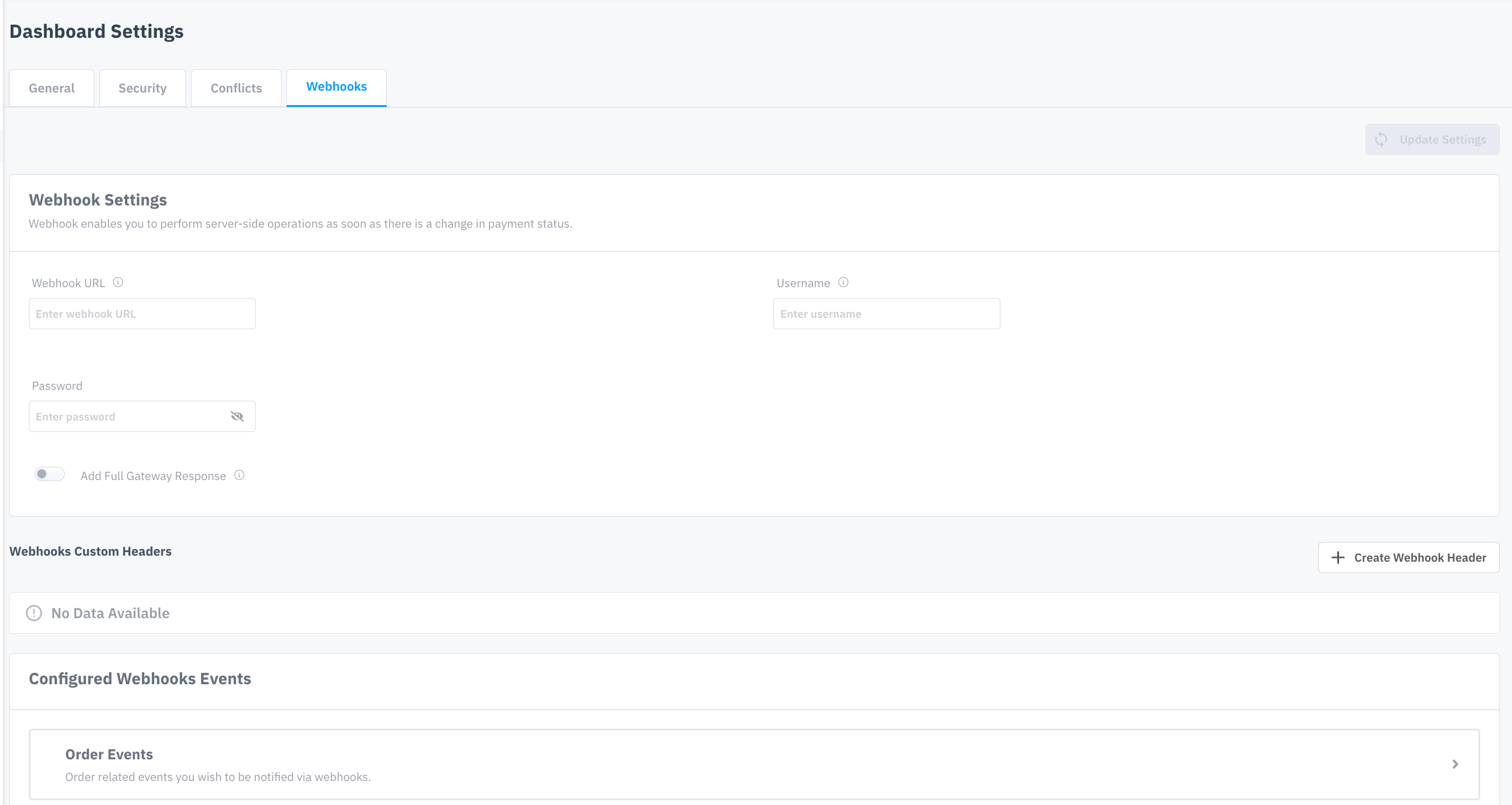

    Webhooks

    Juspay fetches the updated status from payment service providers and updated status can be pushed to the merchant through webhooks. Merchant can configure the webhooks in this section.
    The webhook can be Authenticated by providing a Basic HTTP authentication.
    If you want Juspay to post a custom headers during the webhook notification, you may configure them by click on "Create Webhook" and provide the respective "Name" and the "value".
    Webhook Events- You may choose the required events from the provided list for which

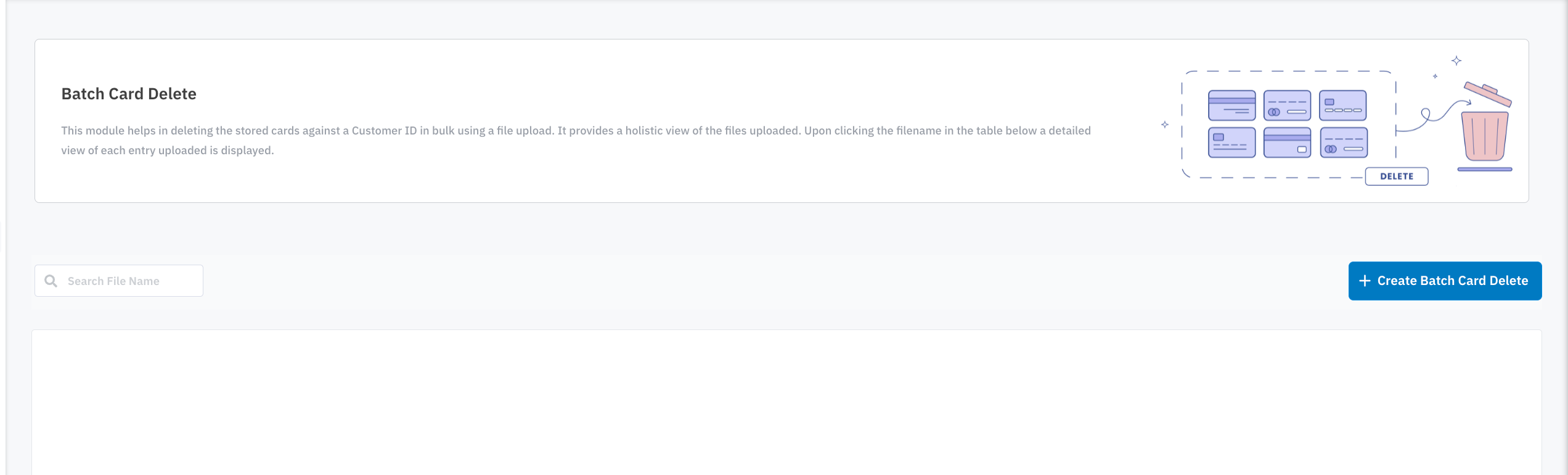

    Batch Card Delete

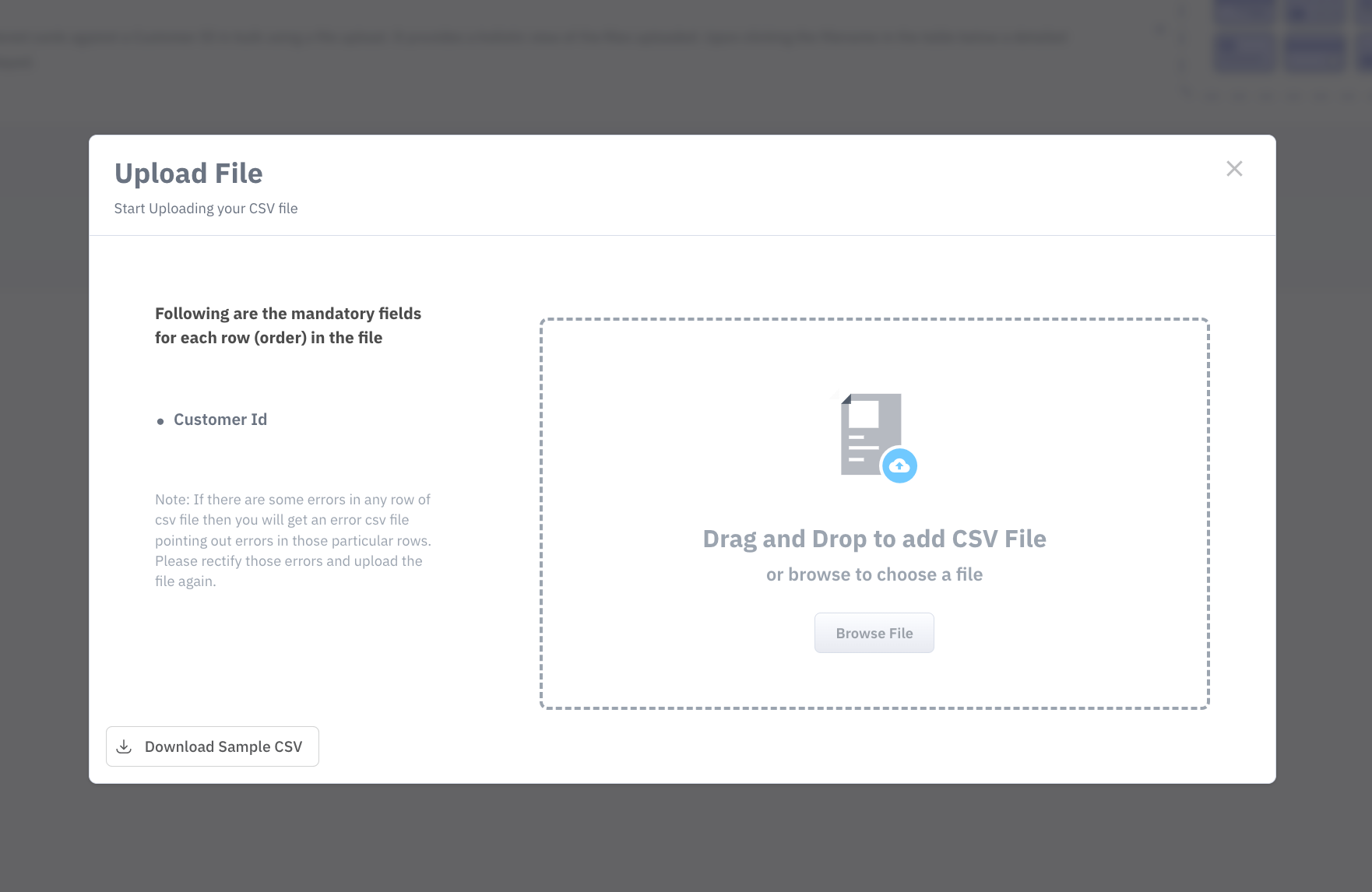

    If customer wants merchant to delete saved card (s) then merchant can use the dashboard to achieve it by uploading batch file of customer ids of which card needs to be deleted.

    📘

    Note Sensitive activity so contact Juspay team before attempting the delete activity

    comment: # (------------------------------------ Annexure 1 Card Tab ------------------------------------ )

    Annexure 1: Credentials of Payment Service Providers

    1. Airtel Money

    Gateway Reference ID

    Salt

    Merchant Id

    Test Mode (T/F)

    1. Axis Card

    Gateway Reference ID

    Access Code

    Merchant Id

    AMA Username

    AMA Password

    Secret Key

    Staged Transaction (T / F)

    Multi Currency Supported (T / F)

    1. Axis NB

    Gateway Reference ID

    Axis Merchant Code

    Axis Secure Secret

    Test Mode (T/F)

    1. Axis UPI

    Gateway Reference Id

    Payee VPA

    MCC

    QR Code Format

    QR Code size

    Waiting Page Expiry in Seconds

    Use Txn UUID as Tr (T / F)

    Test Mode (T / F)

    1. Amazon Pay

    Gateway Reference Id

    Seller Id

    Access Key

    Secret Key

    Test Mode (T / F)

    1. BillDesk

    Gateway Reference Id

    Merchant Id

    Checksum Key

    Rupay Bank Code

    Amex Bank Code

    Legacy Redirect (T / F)

    Card Redirect (T / F)

    Hashing Algorithm

    NB Redirect (T / F)

    Wallet Redirect (T / F)

    Amex Redirect (T / F)

    EMI Redirect (T / F)

    Rewards Redirect (T / F)

    Rupay Redirect (T / F)

    Enable Subscription (T / F)

    1. Blazepay (of PayU)

    Gateway Reference Id

    Merchant Id

    Secret Key

    Access Key

    Test Mode (True / False)

    1. CCAvenue V2

    Gateway Reference Id

    Merchant Id

    Access Code

    Secret Key

    Enable S2S integration (T / F)

    Test Mode (True / False)

    1. Citi

    Gateway Reference Id

    Merchant Code

    Merchant Key

    Test Mode (T / F)

    1. Citrus

    Gateway Reference Id

    Merchant Id

    Secret Key

    Access Key

    Test Mode (T / F)

    1. Cyber Source

    Gateway Reference Id

    Merchant Id

    User name

    Cybersource Account
    Password

    Direct Authorization for un
    enroller cards (T / F)

    User order id as
    reconciliation id (T / F)

    Certificate

    Test Mode (T / F)

    1. EBS V3

    Gateway Reference Id

    Account Id

    Secret

    Page Id

    Test Mode (T / F)

    1. Epay later

    Gateway Reference Id

    mCode

    API Key

    AES Key

    IV

    Category

    Test Mode (T / F)

    1. Freecharge

    Gateway Reference Id

    Merchant Id

    Secret Key

    Direct Debit (T / F)

    Test Mode (T / F)

    1. Google Pay
      Required if Googlepay is being used via Banks. If Googlepay is being used via an aggregator then there is no separate gateway configuration required. It can be enabled from the payment methods configuration of the Aggregator.

    Gateway Reference Id

    Payee VPA

    Payee Name

    MCC

    Test Mode (T / F)

    1. GoCashfree

    Gateway Reference Id

    App Id

    Secret Key

    Is Pre-Authorisation Enabled (T / F)

    Test Mode (T / F)

    1. HDFC

    Gateway Reference Id

    Tranportal Id

    Tranportal Password

    Test Mode (T / F)

    1. HDFC UPI

    Gateway Reference Id

    Payee VPA

    MCC

    QR Code Format

    QR Code Size

    Waiting page expiry in seconds

    Use Txn UUID as Tr (T / F)

    Test Mode (T / F)

    1. HDFC IVR

    Gateway Reference Id

    Tranportal Id

    Tranportal Password

    1. HSBC UPI

    Gateway Reference Id

    Payee VPA

    MCC

    QR Code Format

    QR Code Size

    Waiting page expiry in seconds

    Use Txn UUID as Tr (T/F)

    Test Mode (T / F)

    1. ICICI UPI

    Gateway Reference Id

    Payee VPA

    MCC

    QR Code Format

    QR Code Size

    Waiting page expiry in seconds

    Use Txn UUID as Tr (T / F)

    Transaction Reference Prefix

    Test Mode (T / F)

    1. IPG

    Gateway Reference Id

    Store Id

    User Id

    User Secret

    Password

    Certificate Password

    Certificate

    1. Jio Money

    Gateway Reference Id

    Merchant Id

    Client Id

    Channel

    Checksum Key

    Direct Debit(T/F)

    Test Mode(T/F)

    1. Kotak UPI

    Gateway Reference Id

    Payee VPA

    MCC

    QR Code Format

    QR Code Size

    Waiting page expiry in seconds

    Use Txn UUID as Tr (T / F)

    Transaction Reference Prefix

    Test Mode(T/F)

    1. Kotak

    Gateway Reference Id

    Merchant Id

    Terminal Id

    Passcode

    Merchant Category Code

    Secure Secret Key

    Encryption Key

    Test Mode(T/F)

    1. SIMPL

    Gateway Reference Id

    App Id

    Test Mode(T/F)

    1. MIGS

    Gateway Reference Id

    Merchant Id

    Secure Secret

    Access Code

    AMA User name

    AMA Password

    Staged Transaction (T / F)

    Multi Currency Supported (T / F)

    Enable Subscription (T / F)

    1. Mobikwik

    Gateway Reference Id

    Merchant Name

    Merchant Id

    Secret Key

    SI Key

    Direct Debit (True / False)

    Register user automatically (T / F)

    Test Mode(T/F)

    1. mPESA

    Gateway Reference Id

    Merchant Code

    User Name

    Password

    Secret Key

    Channel Id

    Direct Debit (T / F)

    Test Mode(T/F)

    1. Ola Postpaid

    Gateway Reference Id

    Merchant Access Token

    Merchant Name

    Merchant Private Key

    Salt

    Password

    Ola Public Key

    Test Mode(T/F)

    1. Ola Money

    Gateway Reference Id

    User Name

    Password

    Salt

    Access Token

    Coupon Code

    Direct Debit (T / F)

    Test Mode (T/ F)

    1. PayPal

    Gateway Reference Id

    Client Id

    Secret

    Test Mode (T/ F)

    1. PayU

    Gateway Reference Id

    Salt

    Merchant Key

    Save Sodexo Token (T/F)

    Enable Subscription (T/F)

    Fetch EMI Plans (T/F)

    Test Mode (T/ F)

    1. PhonePe

    Gateway Reference Id

    Merchant Id

    Salt Key 1

    Salt Key 2

    Customer Id

    Direct Debit (True / False)

    Test Mode (T/ F)

    1. PayTM

    Gateway Reference Id

    MID

    Client Id

    website

    Merchant Key

    Secret Key

    Channel Id

    Industry Type Id

    Scope

    Hash Customer Id

    Enable S2S integration (T/F)

    Seamless Transaction (T/F)

    Direct Debit (T/F)

    Process Authorizing
    Status (T/F)

    Enable withdraw flow (Direct
    Debit) (T/F)

    Use New end point

    Test Mode (T/ F)

    1. PayU

    Gateway Reference Id

    Salt

    Merchant Key

    Save Sodexo Token (T/F)

    Enable Subscription (T/F)

    Fetch EMI Plans (T/F)

    Test Mode (T/ F)

    1. RazorPay

    Gateway Reference Id

    Test Mode (T/ F)

    Authorize (To initiate OAuth)

    1. ShopSe

    Gateway Reference Id

    Authorization

    Test Mode (T/ F)

    1. Stripe

    Gateway Reference Id

    Secret Key

    Publishable Key

    Test Mode (T/ F)

    1. Sodexo

    Gateway Reference Id

    Merchant Id

    Terminal Id

    Fetch Balance while list card

    Save Sodexo Token Implicitly (T / F)

    Test Mode (T/ F)

    1. TechProcess

    Gateway Reference Id

    Merchant Code

    Encryption Key

    Encryption IV

    Scheme Code

    Amex Card bank code

    International card bank code

    Debit card bank code

    Credit Card bank code

    Test Mode (T/ F)

    1. Yes Bank UPI

    Gateway Reference Id

    Payee VPA

    QR Default Format

    QR Default Size

    MCC

    Waiting page expiry in seconds

    Use Txn UUID as Tr (T / F)

    Test Mode (T / F)

    1. Zaakpay

    Gateway Reference Id

    Merchant Id

    Encryption Key Id

    Secret Key

    Public Key for RSA

    Test Mode (T / F)

    1. Zestmoney

    Gateway Reference Id

    Client Id

    Client Secret Key

    Merchant Secret Key

    Test Mode (T / F)

    1. Payfort

    Gateway Reference Id

    Access Code

    Merchant Id

    Encryption Key

    Decryption Key

    Encryption Method

    Test Mode

    1. PAYTM_V2

    Gateway Reference Id

    MID

    Ind Type Id

    Channel Id

    Client Id

    Website

    Merchant Key

    s2s enable

    Enable Card Mandate

    Enable Emandate

    Test Mode(T/F)

    Card Direct Otp Enabled

    1. EASEBUZZ

    Gateway Reference Id

    Key

    Salt

    Test Mode(T/F)

    1. SEZZLE

    Gateway Reference Id

    Public Key

    Private Key

    Test Mode(T/F)

    1. PayGlocal

    Gateway Reference Id

    Merchant Id

    Private Key KId

    Public Key KId

    Private Key

    Public Key

    Test Mode


    Annexure 2: Sample Routing logics

    Refer Documentation on Routing logic:

    Samples

    Example 1: Routing based on Channel

    If you wish to route the transaction based on channel say web or mobile.

    def priorities = ['HDFC', 'ICICI', 'PAYU']
      // above is the default priority

      if (order.udf1 == 'web') {
        priorities = ['HDFC','PAYU','ICICI']
      }
      else if (order.udf1 == 'mobile' && order.udf2 == 'android')
        priorities = ['ICICI','HDFC','PAYU']
      }
      setGatewayPriority(priorities)


    Example 2 : Volume based Routing

     // def myGateways = ['HDFC','ICICI']
      // Goal: 50% approx split between two gateways

      if(currentTimeMillis % 10 < 5) {
        setGatewayPriority(['HDFC', 'ICICI'])
      }
      else {
        setGatewayPriority(['ICICI', 'HDFC'])
      }

      // def myGateways = ["HDFC","ICICI", "AXIS"]
      // Goal: 1/2 split between two gateways and use third as backup
      if(currentTimeMillis % 10 < 5) {
        setGatewayPriority(['HDFC', 'ICICI', 'AXIS'])
      }
      else {
        setGatewayPriority(['ICICI', 'HDFC', 'AXIS'])
      }


    Example 3 : Issuer based Routing

      def priorities = [ 'HDFC', 'ICICI' ]
      // default priorities
      if (payment.cardIssuer == 'ICICI Bank') {
        // if ICICI Bank card, use ICICI
        priorities = [ 'ICICI', 'HDFC' ]
      }
      else if (order.udf1 == 'mobile' && order.udf2 == 'android')
        // for android transactions, use ICICI
        priorities = [ 'ICICI', 'HDFC' ]
      }
      else { // for everything else use HDFC as primary
        priorities = [ 'HDFC', 'ICICI' ]
      }
      setGatewayPriority(priorities)
